Product Code/SKU
Code
0003958000
Descriptions
Mini-centrifuge for all applications which do not require high speeds, e.g. micro-filtrations and cell separation. The mini-centrifuge can be used for both PCR-vessels and PCR-strips. Fixed speed of 6000 rpm and digital timer adjustable from 1 to 99 mins.
Scope of delivery
- IKA mini G

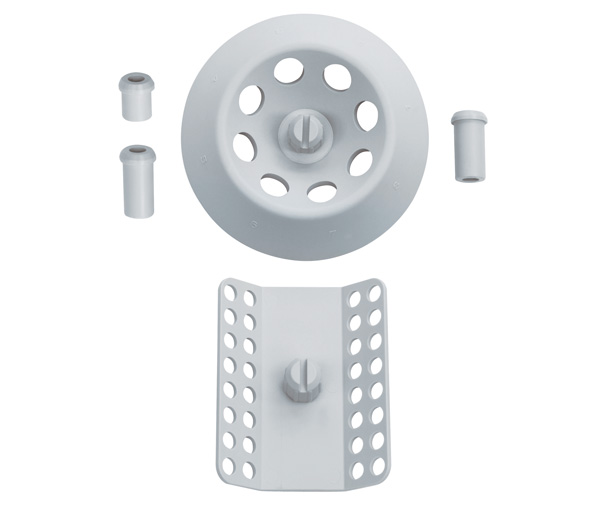

- Rotor for 8 x 1.5/2 ml vessels
- Rotor for 4 x 8 x 0.2 ml PCR strips
- 8 adapters for 0.5 ml vessels (8 pcs.)
- Adapter set for 0.4 ml vessels (8 pcs.)
- Adapter set for 0.2 ml vessels (8 pcs.)
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Capacity | 8 x 2 ml |
| Pemitted density | 1.2 kg/dm3 |
| RCF (relative centrifugal force) max. | 2000 G |
| Kinetic energy max. | 20 Nm |
| Motor rating input | 12 W |
| Motor rating output | 8 W |
| Speed range | 6000 - 6000 rpm |
| Speed deviation | 5 % |
| Power-ON time | 99 min |
| Timer | yes |
| Timer display | 7 segment LED |
| Permissible ON time | 100 % |
| Quick stop | yes |
| Cover opening | automatic |
| Rotor exchange | without tool |
| Protective cover | yes |
| Noise level | 48 dB(A) |
| Dimensions (W x H x D) | 155 x 105 x 175 mm |
| Weight | 1.4 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 12 W |
| DC Voltage | 24 V= |
| Current consumption | 500 mA |
