Product Code/SKU
Code
1340-6625
Descriptions

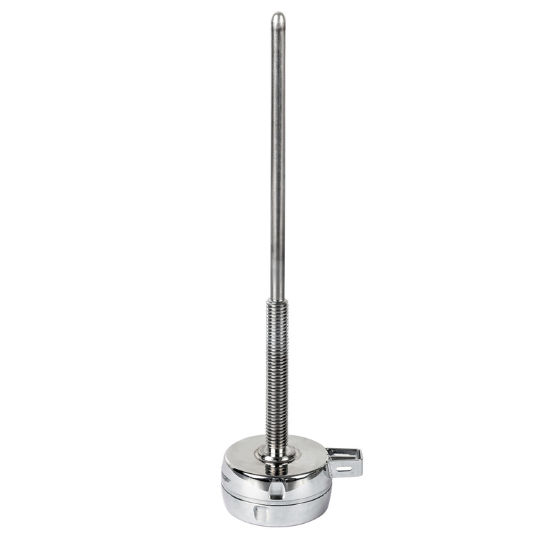

For measuring inside and outside of the beverage bottle or beverage can.
The data logger is used for measurement during validation of food manufacturing processes. The central axial probe measures the temperature inside the beverage can or bottle. The lateral sensor measures the temperature outside the beverage package. The data obtained can be used to draw conclusions about the temperature exposure time.
The logger is characterized by its robustness and high accuracy.
Benefits:
- large measuring range
- wireless measurement
- Easy to fix
- high accuracy
- robust data logger
Applications:
- Food Safety
- Pasteurization Control
- PU value determination
- Determination of the temperature exposure time
- F0 Value calculation
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Operating temperature | -55 °C … +150 °C |
| Measurement range | -55 °C … +150 °C |
| Accuracy | ± 0.5 °C (-55 °C … -40 °C) |
| ± 0.2 °C (-40 °C … 0 °C) | |
| ± 0.1 °C (0 °C … +150 °C) | |
| Resolution | 0.01 °C |
| Data memory | 2x 13,920 measurements |
| Sensor | PT1000, class A |
| Measurement interval | 1 s … 24 hours |
| Real-time data transmission | No |
| Storage temperature | -20 °C … +70 °C |
| Measurement modes | Endless measurement |
| Measurement from the start time | |
| Measure software until memory is full | |
| Start- / Stop measurement Battery Lithium, 3.6 V, User-replaceable | |
| Dimensions(Ø x H) | 48 mm x 24 mm |
| Weight | app. 90 g |
| Housing material | 316 L stainless steel / PEEK |
| Protection class | IP68 |
| Factory Calibration Certificate | -20 °C, 0 °C, +60 °C and +121 °C |
