Product Code/SKU
Code
0003990000
Descriptions

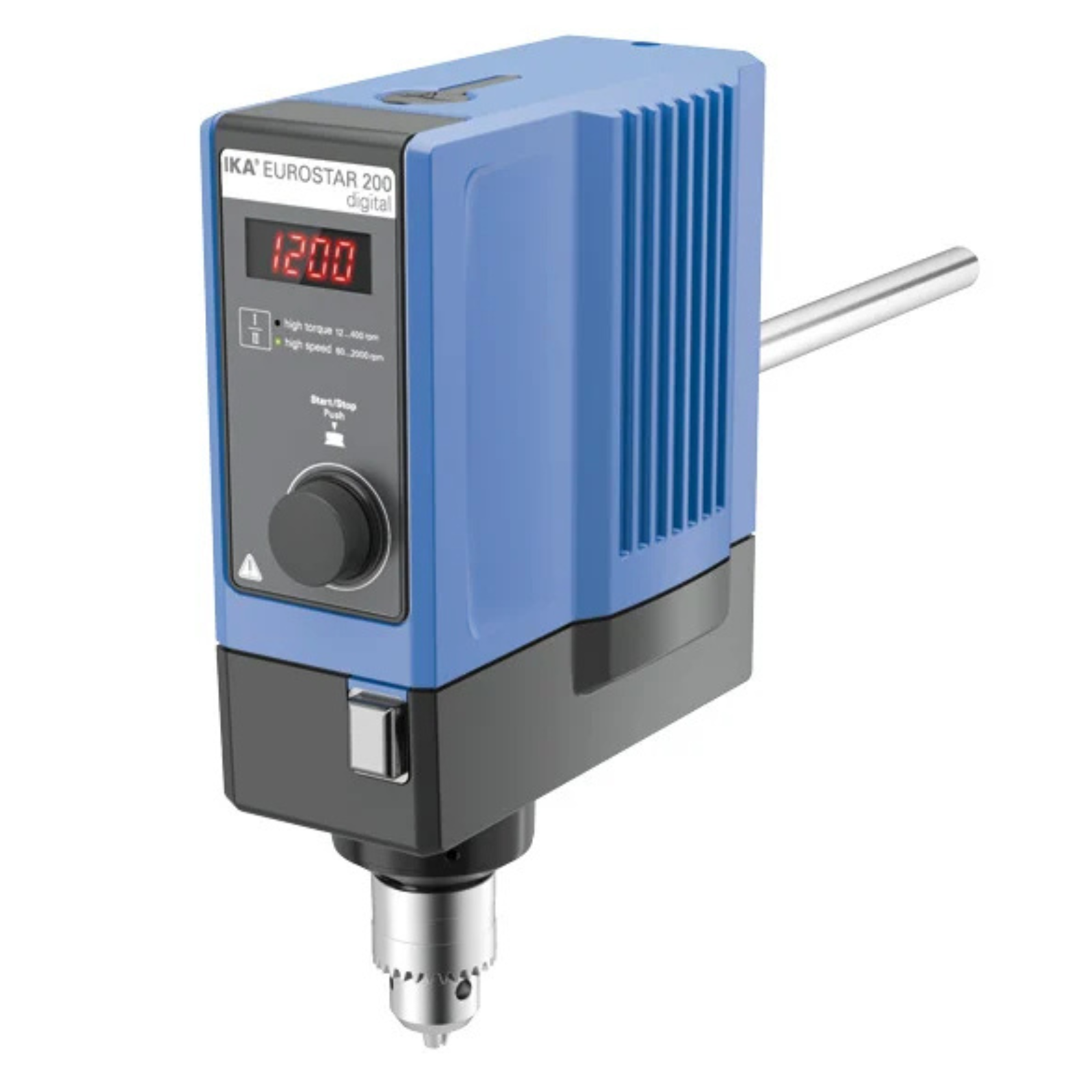

Powerful Overhead Stirrers for Universal Stirring Tasks EUROSTAR 200 digital
Extremely powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/6 – 2000 rpm (two speed ranges).
Scope of delivery
- EUROSTAR 200 digital
- Chuck key
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Stirring quantity max. per stirring position (H2O) | 100 l |
| Motor rating input | 130 W |
| Motor rating output | 84 W |
| Motor principle | Brushless DC |
| Speed display | 7 segment LED |
| Speed range | 0/6 - 2000 rpm |
| Viscosity max. | 100000 mPas |
| Output max. at stirring shaft | 84 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 200 Ncm |
| Torque max. at stirring shaft | 200 Ncm |
| Torque I max. | 200 Ncm |
| Torque II max. | 40 Ncm |
| Speed range I (50 Hz) | 6 - 400 rpm |
| Speed range II (50 Hz) | 30 - 2000 rpm |
| Speed range I (60 Hz) | 6 - 400 rpm |
| Speed range II (60 Hz) | 30 - 2000 rpm |
| Speed adjustment | stepless |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement n > 300rpm | ±1 % |
| Deviation of speed measurement n < 300rpm | ±3 rpm |
| Stirring element fastening | chuck |
| Plug-in coupling (Ø) | 10 mm |
| Chuck range diameter | 0.5 - 10 mm |
| Hollow shaft, inner diameter | 10.3 mm |
| Hollow shaft (push-through - when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Speed control | electronic |
| Nominal torque | 2 Nm |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 91 x 274 x 209 mm |
| Weight | 4.6 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 130 W |
