Product Code/SKU
Code
0025006650
Descriptions
Compact Lab Scale Dispersers T 25 mini control ULTRA-TURRAX
Crushing dispersers are versatile tools used in various industries for tasks like homogenizing, emulsifying, suspending, and particle reduction. They are particularly effective in breaking down materials into finer particles or mixing substances evenly. Common applications include:
- Laboratory Use: Preparing samples for analysis, such as effluent homogenization or PCR analysis.
- Industrial Processes: Crushing and dispersing materials under vacuum pressure or high temperatures.
- Pharmaceuticals: Dissolving tablets and ensuring sterility in sample preparation.

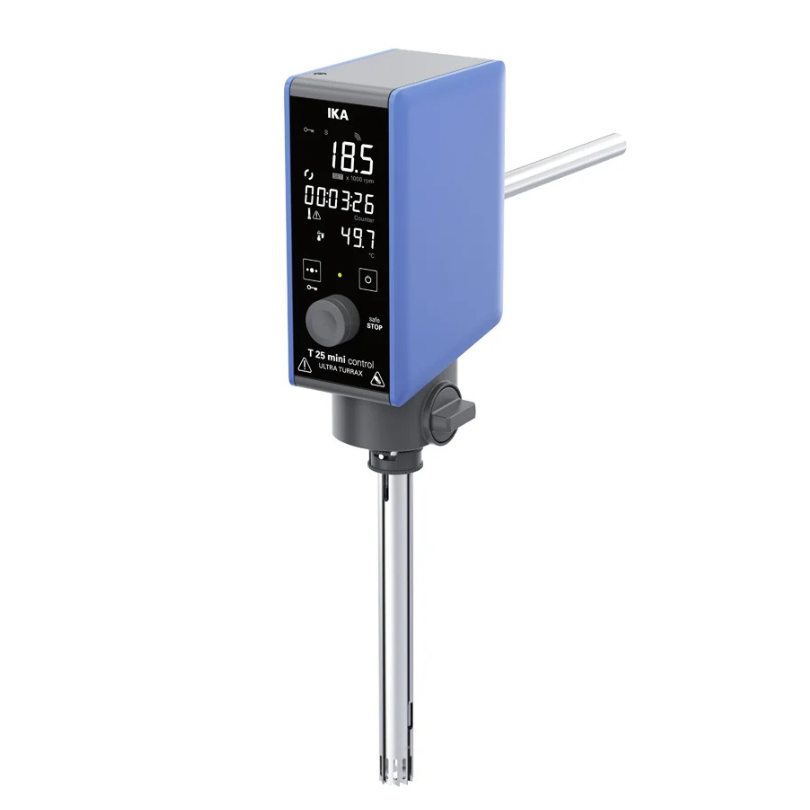

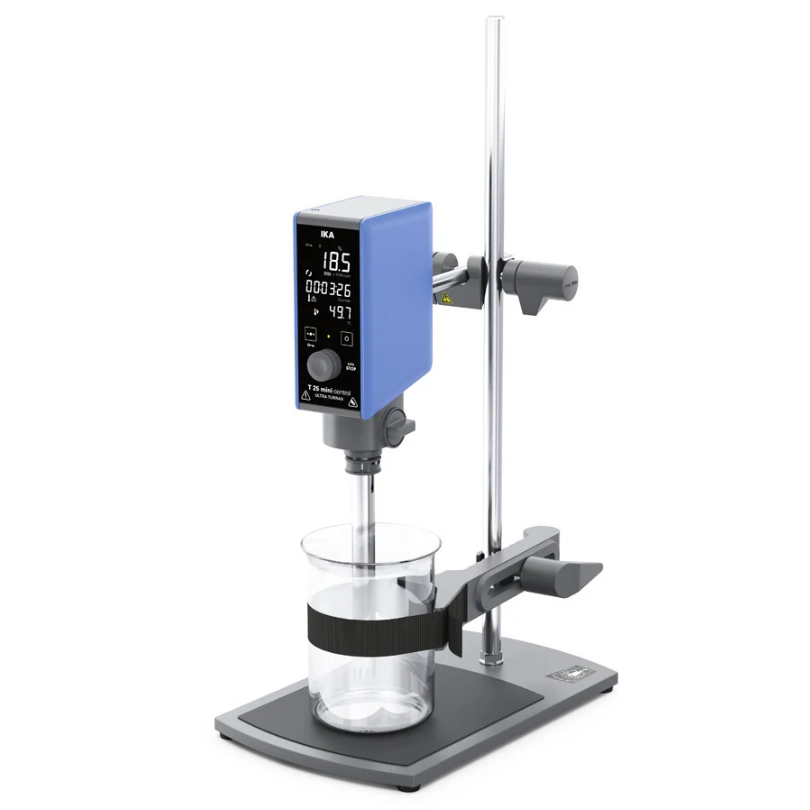

The T 25 mini control is a high-performance dispersing instrument with a wide speed range of 600 - 25,000 rpm for working volumes of up to 1.5 liters (H20). A broad choice of dispersing elements guarantee a wide range of applications for efficient emulsification, homogenization, dispersing and suspending as well as reduction of particle sizes to the micrometer range.
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Motor rating input | 210 W |
| Motor rating output | 160 W |
| Volume range (H2O) | 0.001 - 1.5 l |
| Viscosity max. | 2000 mPas |
| Speed range | 600 - 25000 rpm |
| Deviation of speed measurement n > 3000rpm | ±3 % |
| Deviation of speed measurement n < 3000rpm | ≤±100 rpm |
| Speed display | LED |
| Speed adjustment | Stepless |
| Noise without element | 75 dB(A) |
| Motor principle | Brushless DC |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Process type | batch |
| Temperature display | yes |
| Temperature measuring range | 0 - 125 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±1 K |
| Timer | yes |
| Timer display | LED |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 66 x 186 x 100 mm |
| Weight | 1.8 kg |
| Permissible ambient temperature | :5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| RS 232 interface | Yes |
| USB interface | USB-C |
| WPAN interface | Yes |
| WiFi Interface | Yes |
| Ethernet interface | Yes |
| Voltage | 50/60 Hz |
| Power input | 210 W |
| Power input max. | 250 W |
| Power input standby | 3 W |
| DC Voltage | 48 V= |
| Current consumption | 4500 mA |
