Product Code/SKU
Code
0020027388
Descriptions
Scope of delivery

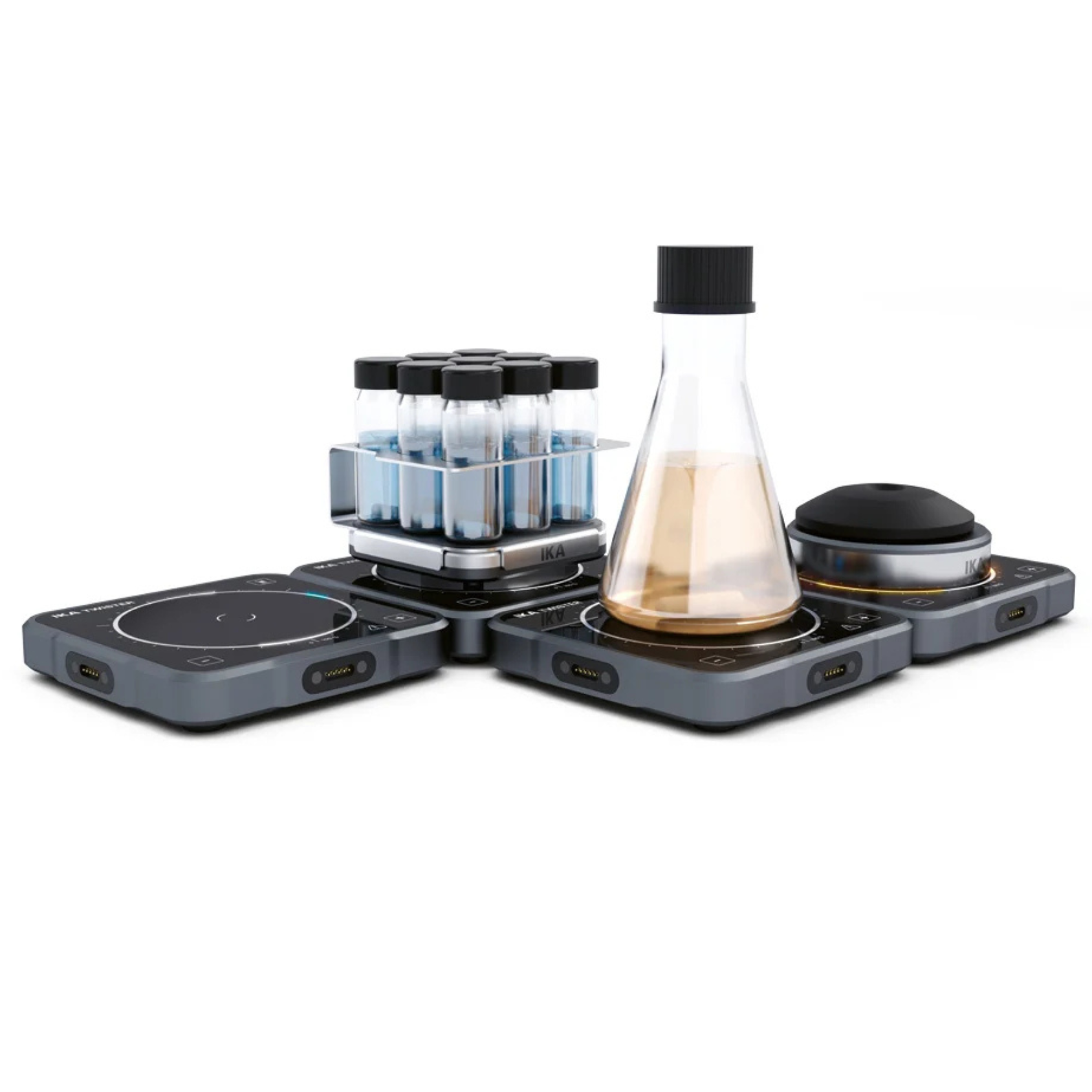

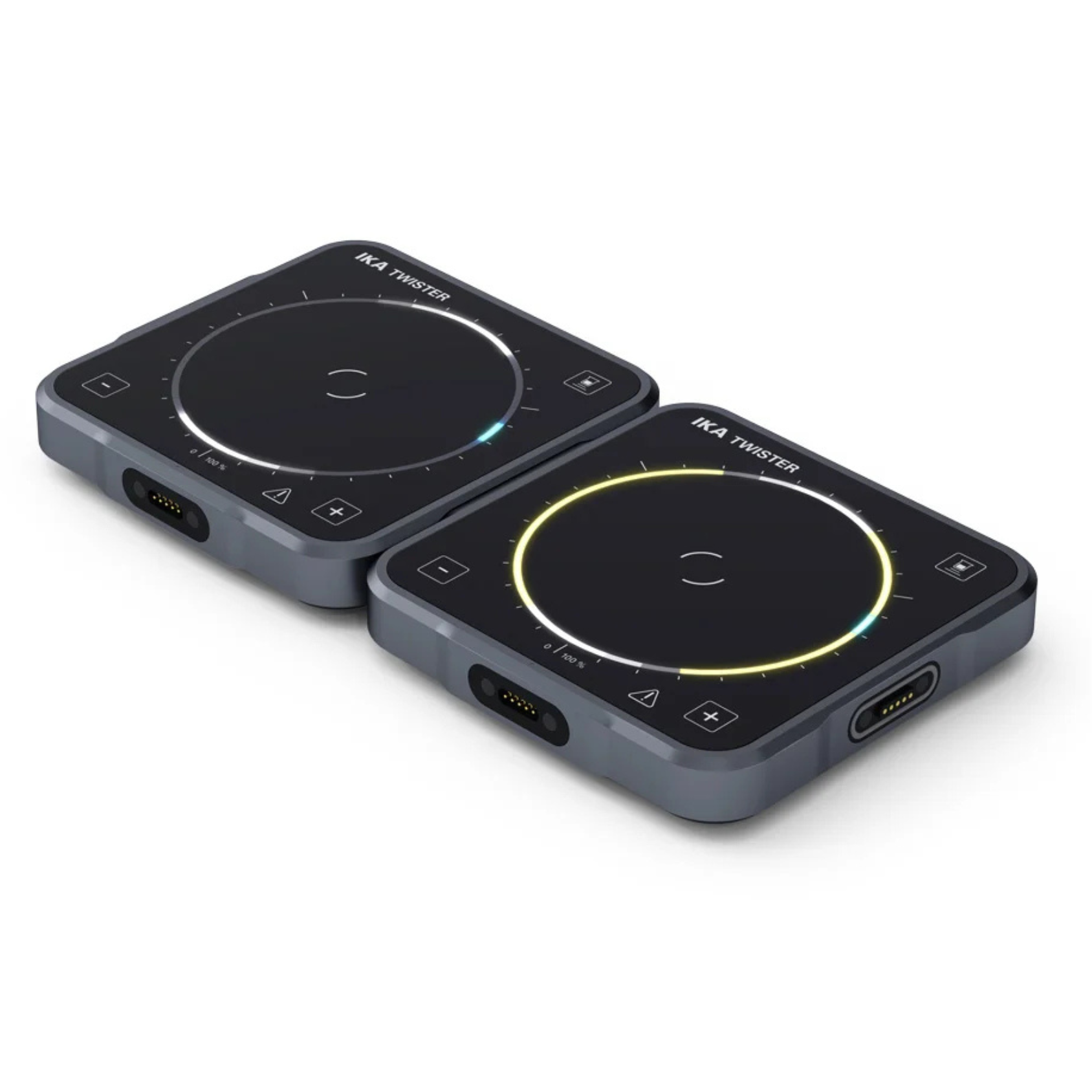

- IKA TWISTER stirring unit (2 pcs.)
- Power supply
- IKAFLON® 25 Magnetic stirring bar (2 pcs.)
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Number of stirring positions | 2 |
| Stirring quantity min. per stirring position (H2O) | 0.005 l |
| Stirring quantity max. per stirring position (H2O) | 5 L |
| Maximum load | 7.5 kg |
| Motor rating output | 5 W |
| Direction of rotation | Right / Left |
| Speed display set-value | LED |
| Speed display actual-value | LED |
| Speed adjustment | Touch key |
| Speed range | 100 - 3000 rpm |
| Setting accuracy speed | 100 rpm |
| Stirring bar length | 10 - 30 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +6 K |
| Set-up plate material | glass |
| Set-up plate dimensions | 124 x 124 mm |
| Automatic reverse rotation | yes |
| Intermittent mode | 6sec - 30min |
| Viscosity trend measurement | yes |
| Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | ±2 % |
| Modular expandable stirring system (2-30 units) | yes |
| Leader- follower operation (minimum 2 units required, leader unit controls synchronously follower unit) | yes |
| Vessel detection (optional activated/deactivated) | yes |
| Dimensions (W x H x D) | 135 x 24 x 135 mm |
| Weight | 0.6 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 66 |
| USB interface | optional |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 10 W |
| Power input standby | 1 W |
| DC Voltage | 24 V= |
| Current consumption | 400 |
