Product Code/SKU
Code
0002900000
Descriptions

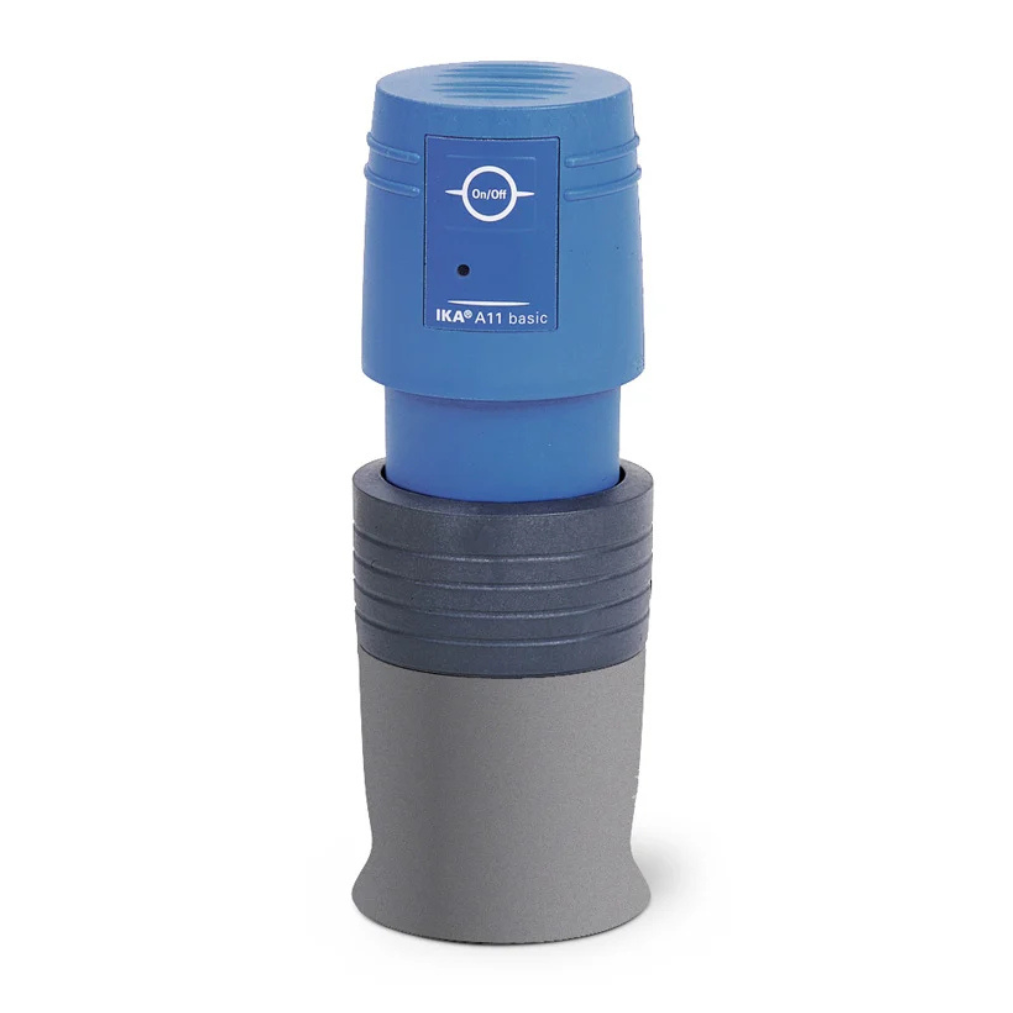

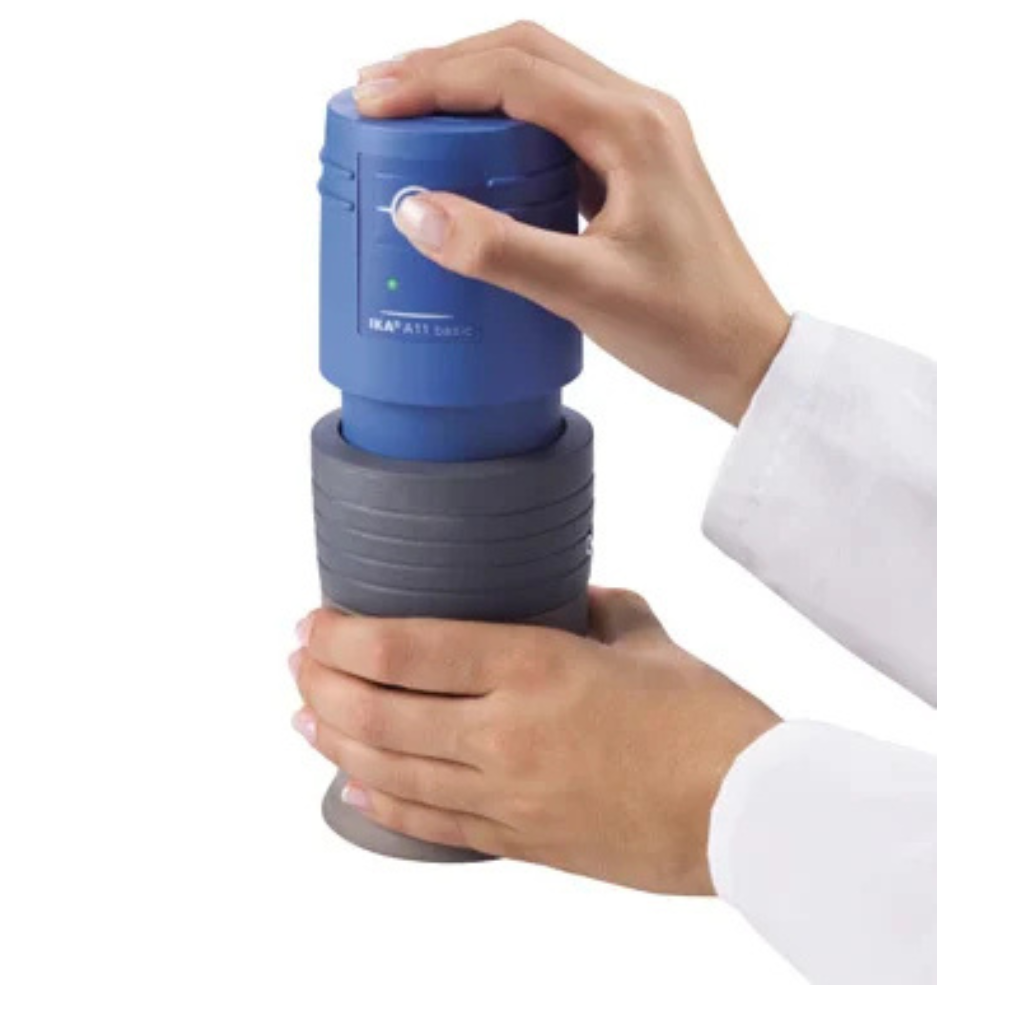

Batch Milss A 11 basic Analytical Mill
Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery).
Scope of delivery
- A 11 basic Analytical mill
- A 11.1 Spare beater
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Process type | batch |
| Operating principle | cutting/impact |
| Motor rating input | 300 W |
| Motor rating output | 240 W |
| Speed max. | 25000 rpm |
| Circumferential speed max. | 53 m/s |
| Useable volume max. | 80 ml |
| Feed hardness max. | 6 Mohs |
| Feed grain size max. | 10 mm |
| Material beater/cutter | stainless steel 1.4034 |
| Material milling chamber | stainless steel 1.4571 |
| Power-ON time | 1 min |
| Power-OFF time | 10 min |
| Mill feed can be cooled in milling chamber with dry ice | yes |
| Mill feed can be cooled in milling chamber with liquid nitrogen | yes |
| Dimensions (W x H x D) | 85 x 240 x 85 mm |
| Weight | 1.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 43 |
| Voltage | 220 - 230 V |
| Frequency | 50/60 Hz |
| Power input | 160 W |
