Product Code/SKU
Code
0003581000
Descriptions

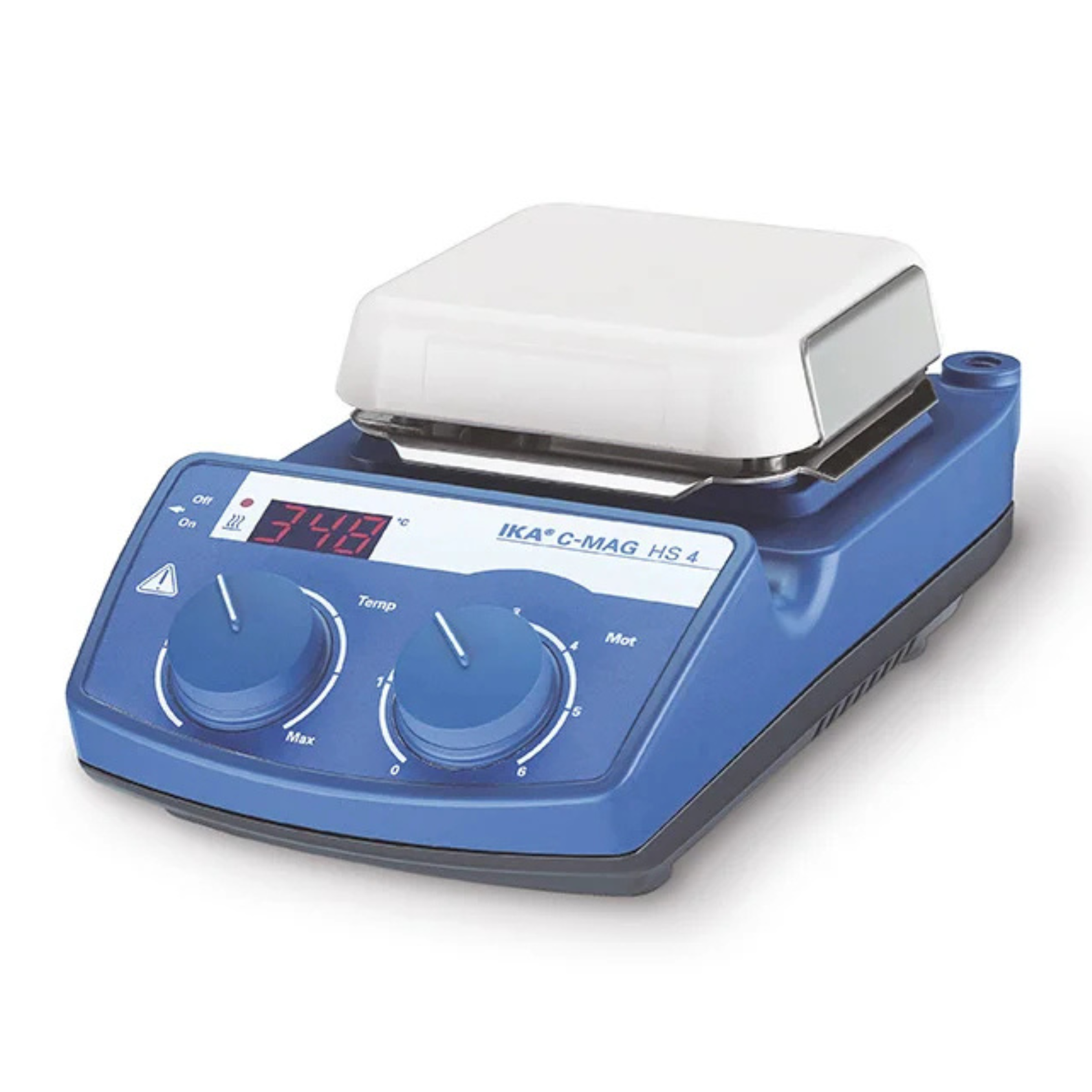

With Heating C-MAG HS 4 Magnetic Stirrer
Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance. Powerful motor for stirring quantities of up to 5 l (H2O).
Scope of delivery
- C-MAG HS 4
- IKAFLON® 20 Magnetic stirring bar
- IKAFLON® 30 Magnetic stirring bar
- IKAFLON® 40 Magnetic stirring bar
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 5 l |
| Maximum load | 7.5 kg |
| Motor rating output | 1.5 W |
| Direction of rotation | left |
| Speed adjustment | scale 0 - 6 |
| Speed range | 100 - 1500 rpm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +2 K |
| Heat output | 250 W |
| Temperature display set-value | LED |
| Heating temperature range | 50 - 500 °C |
| Heat control | Turning knob |
| Temperature setting resolution of heating plate | 5 K |
| Fixed safety circuit | 550 °C |
| Set-up plate material | ceramic |
| Set-up plate dimensions | 100 x 100 mm |
| Heating rate (1l H2O in H1500) | 2.5 K/min |
| Dimensions (W x H x D) | 150 x 105 x 260 mm |
| Weight | 3 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 270 W |
