Product Code/SKU
Code
0010004520
Descriptions
Bomb calorimetry is a scientific technique used to measure the heat of combustion of a substance. It involves a device called a bomb calorimeter, which is a type of constant-volume calorimeter. Here's how it works
- Setup: The substance to be tested is placed in a sealed container (the "bomb") along with oxygen to ensure complete combustion.
- Ignition: The substance is ignited, and the heat released during combustion is absorbed by the surrounding water in the calorimeter.
- Measurement: The temperature change in the water is measured, and this data is used to calculate the heat of combustion.

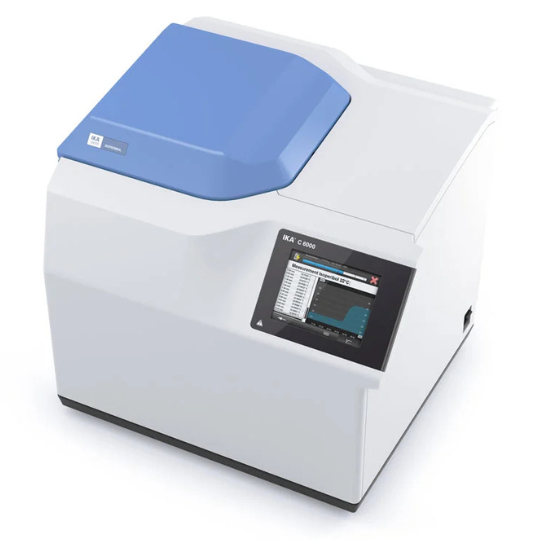

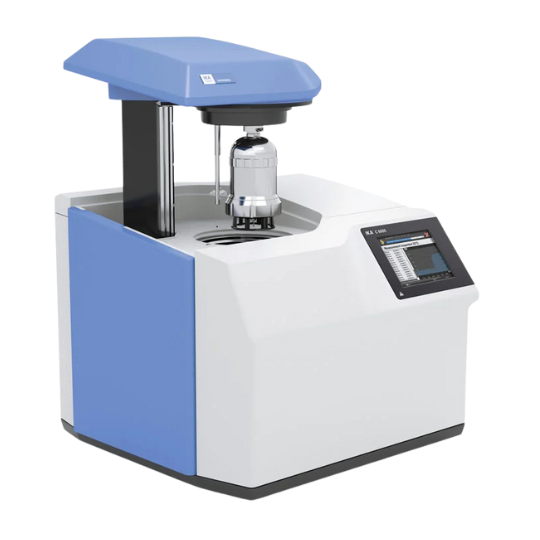

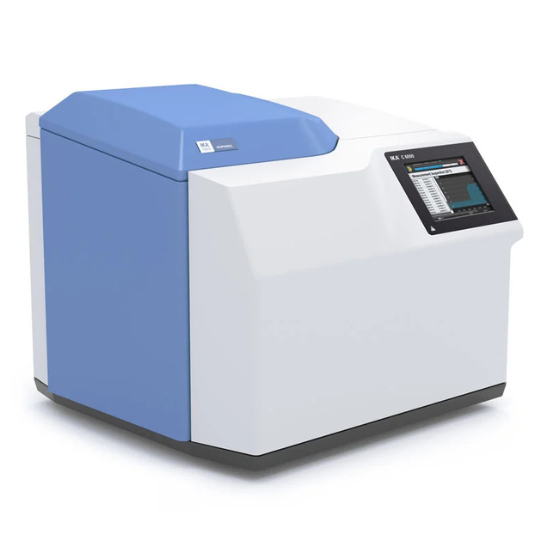

The C 6000 isoperibol oxygen bomb calorimeter combines modern technology, variability and automation in one instrument. It operates according to all bomb calorimeter standards, such as e.g. the DIN, ISO, ASTM, GOST and GB. The operator can choose between three different starting temperatures 22 °C, 25 °C, 30 °C in each measuring mode. Due to the new design of the decomposition vessel the measurement time could be reduced. Due to the variety of different interfaces for PC, printer (Ethernet, serial and USB), balance and USB Stick this unit is easily adaptable to the customer’s specific application needs. Further adaption to data management and LIMS is possible with our calorimeter software C 6040 Calwin (Accessory).
Measuring modes:
- isoperibol
- dynamic
Features:
- Automatic ignition and ignition energy determination
- Automatic water filling and draining
- Automatic oxygen filling, venting and flushing
- RFID technology for automatic decomposition vessel identification
- New design of the decomposition vessel allowing easier and faster sample preparation
- Easy and convenient capacitive touch screen operation
- Control chart view and correction calculation of globally used standards
- Ethernet interface to connect a network printer
- USB interface allowing easy data management and software updates
The C 6000 isoperibol Package 1/10 consists of:
- C 6000 isoperibol
- C 6010 decomposition vessel, standard
- RC 2 basic cooling water supply
Scope of delivery :
C 6000 isoperibol
C 6010 Decomposition vessel, standard
RC 2 basic
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Measuring range max. [J] | 40000 |
| Measuring mode dynamic 22°C | yes |
| Measuring mode isoperibol 22°C | yes |
| Measuring mode dynamic 25°C | yes |
| Measuring mode isoperibol 25°C | yes |
| Measuring mode dynamic 30°C | yes |
| Measuring mode isoperibol 30°C | yes |
| Measurements/h dynamic | 6 |
| Measurements/h isoperibol | 4 |
| Reproducibility dynamic (1g benzoic acid NBS39i) [%RSD] | 0.15 |
| Reproducibility isoperibol (1g benzoic acid NBS39i) [%RSD] | 0.05 |
| Touchscreen | yes |
| Working temperature [°C] | 22 - 30 |
| Temperature measurement resolution [K] | 0.0001 |
| Cooling medium temperature [°C] | 12 - 27 |
| Cooling medium permissible operating pressure [bar] | 1.5 |
| Cooling medium | tap water |
| Type of cooling | flow |
| Chiller | RC 2 basic |
| Flow rate [l/h] | 60 - 70 |
| Rec. flow rate at 18°C [l/h] | 60 |
| Oxygen operating pressure max. [bar] | 40 |
| Interface scale | RS232 |
| Interface printer | USB |
| Interface PC | RS232 |
| Interface test rack | yes |
| Interface ext. keyboard | Yes |
| Oxygen filling | Yes |
| Degasification | Yes |
| Decomposition detection | Yes |
| Decomposition vessel C 6010 | Yes |
| Analysis according to DIN 51900 | Yes |
| Analysis according to ASTM D240 | Yes |
| Analysis according to ASTM D4809 | Yes |
| Analysis according to ASTM D5865 | Yes |
| Analysis according to ISO 1928 | Yes |
| Analysis according to GB T213 | Yes |
| Works according to DIN 51900 | Yes |
| Works according to DIN EN ISO 1716 | Yes |
| Works according to DIN EN ISO 9831 | Yes |
| Works according to DIN EN ISO 18125 | Yes |
| Works according to DIN EN 15170 | Yes |
| Works according to DIN EN 15400 | Yes |
| Works according to DIN CEN TS 14918 | Yes |
| Works according to DIN CEN/TS 16023 | Yes |
| Works according to DIN SPEC 19524 | Yes |
| Works according to ASTM D240 | Yes |
| Works according to ASTM D4809 | Yes |
| Works according to ASTM D5468 | Yes |
| Works according to ASTM D5865 | Yes |
| Works according to ISO 1928 | Yes |
| Works according to GB T213 | Yes |
| Works according to GOST Certified | Yes |
| Dimensions (W x H x D) [mm] | 500 x 425 x 450 |
| Weight [kg] | 73.26 |
| Permissible ambient temperature [°C] | 20 - 30 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage [V] | 220 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 1700 W |
