Product Code/SKU
Code
1340-6658
Descriptions

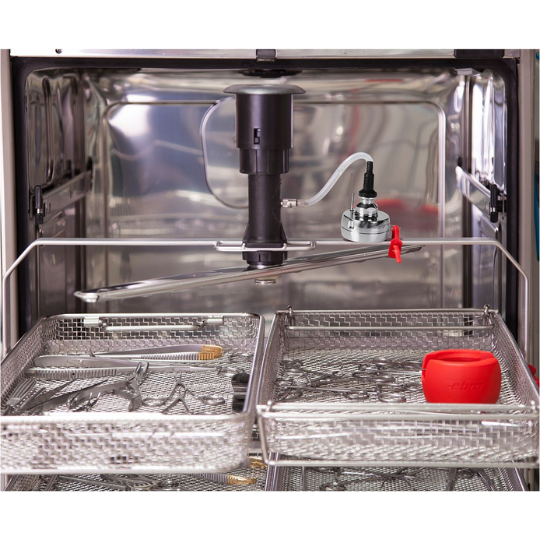

To measure in WD's and steam sterilizers.

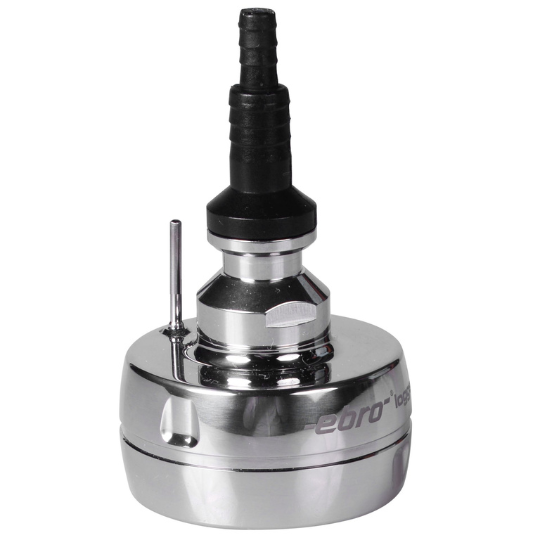

The data logger for routine and batch control in the WD and steam sterilizer. The logger is characterized by high accuracy and the hose connection for the pressure sensor. This data logger is part of the emergency set which we recommend for every reprocessing unit for medical devices in order to be able to continue to collect and store independent measurement data during reprocessing even in the event of a network failure.
Benefits:
- Robust data logger
- Wireless measurement
- Realtime data transmission
- Sterilizable data logger
Applications:
- Validierlogger für die Messung im Dampfsterilisator, RDG, RDG-E
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Operating temperature | 0 °C … +140 °C |
| Measurement range | 0 °C … +140 °C |
| Accuracy temperature | ± 0.1 °C |
| Accuracy pressure | ± 20 mbar |
| Resolution temperature | 0.01 °C |
| Resolution pressure | 1 mbar |
| Data memory | 2x 33,440 measurements |
| Sensor temperature | PT1000, class A |
| Sensor pressure | Piezoresistive pressure sensor |
| Measurement interval | 250 ms … 24 hours |
| Real-time data transmission | Yes |
| Storage temperature | -20 °C … +70 °C |
| Measurement modes | Endless measurement |
| Measure upon starttime | |
| Start immediately until end of memory | |
| Start- / Stop measurement | |
| Battery | Lithium, 3.6 V, User-replaceable |
| Dimensions (Ø x H) | 48 mm x 24 mm |
| Weight | app. 90 g |
| Housing material | 316 L stainless steel / PEEK |
| Protection class | IP68 |
| Factory Calibration Certificate | 0 °C, +60 °C and +134 °C 100 mbar and 3,100 mbar (at +25 °C) 3,100 mbar (at +134 °C) |
