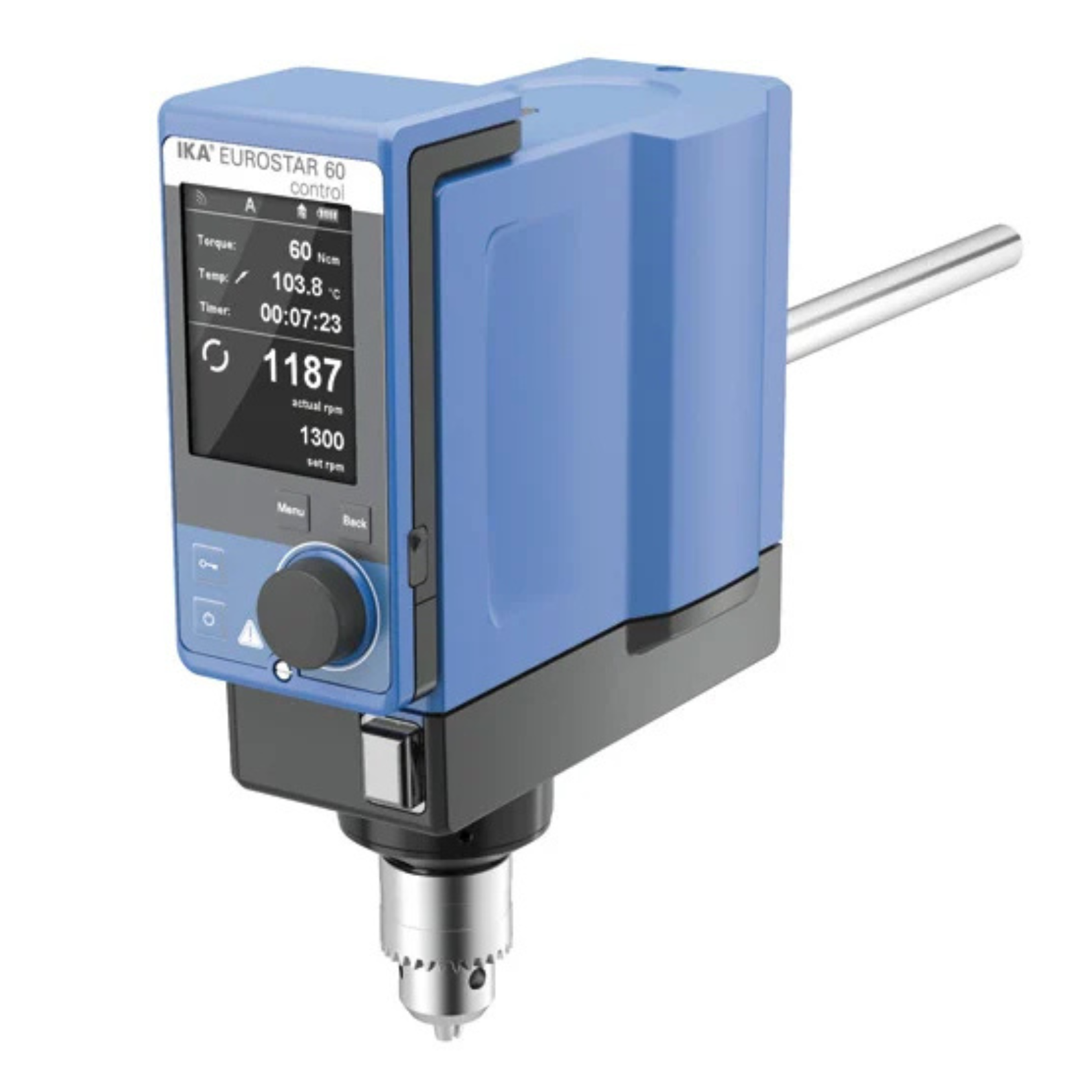

EUROSTAR 60 Control

Product ID: 0020105158

Product Code/SKU

Code

0004440000

Descriptions

Highest precision thanks to new viscosity measurement
An integrated torque sensor offers high precision torque monitoring (+/- 1 Ncm accuracy). The torque measurement
data can be used to calculate viscosity (mPas) based on user selected stirrer and vessel criteria providing important
feedback on the mixing process. The desired stirring speed 30-2000rpm is always guaranteed even with changes to the
torque demand or viscosity of the material.
ISO Class 7/8 Cleanroom Compliance allows for use in cleanroom environments in pharmaceutical, biotech, medical
device, electronics, and aerospace labs, industries where particle control is critical.

Maximum safety and reliability
• User-friendly: Large TFT display shows all parameters at a glance
• Quick Sense Keyless Chuck: allows the mixing tools to be changed with one hand, without additional tools
• Lock key: Prevents accidental changes to settings
• Safety Circuits: automatic safety shutoff from stirring impeller blockage or user specified torque limit
• Protection class IP 54: Resistant to splash water and steam for reliable use in demanding environments
• Brushless motor: Durable, clean and quiet in operation

Connectivity and documentation
• Program modes and graph display offer advanced control options
• More interfaces: USB, RS232, Ethernet, wireless and Wi-Fi connectivity offer enhanced possibilities for automation
• Compatible with labworldsoft® laboratory software for integration into digital workflows and documentation of processes

Feautures
• Viscosity measurement (mPas)
• High precision torque measurement +/- 1Ncm
• Vibration sensor
• Integrated Light
• Left/Right rotation direction (interval mode)
• Speed: Soft start in 3 modes
• Chaotic Mixing Mode
• Lock ring indication (chuck)
• Temperature measurement
• Program mode
• Graph display
• TFT Display
• Wireless(WPAN), Ethernet & Wifi connection

Show All

*Please click "Request Form" for complete information regarding Prices and Stock.

Technical Specifications

Stirring quantity max. per stirring position (H2O)	60 l
Motor rating input	168 W
Motor rating output	131 W
Motor principle	Brushless DC
Speed display	TFT
Speed range	0/30 - 2000 rpm
Intermittent operation	yes
Viscosity max.	50000 mPas
Output max. at stirring shaft	126 W
Permissible ON time	100 %
Torque max. at stirring shaft	100 Ncm
Speed adjustment	stepless
Setting accuracy speed	±1 rpm
Deviation of speed measurement n > 300rpm	±1 %
Deviation of speed measurement n < 300rpm	±3 rpm
Stirring element fastening	chuck
Connection for ext. temperature sensor	PT1000
Temperature display	yes
Chuck range diameter	0.5 - 10 mm
Hollow shaft, inner diameter	11 mm
Hollow shaft (push-through - when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	16 mm
Extension arm length	220 mm
Torque display	yes
Speed control	electronic
Nominal torque	0.6 Nm
Torque measurement	yes
Deviation of torque measurement I	±1 Ncm
Timer	yes
Timer display	TFT
Time setting range	1 - 6000 min
Temperature measuring range	-10 - 350 °C
Temperature measurement resolution	0.1 K
Accuracy of temperature measurement	±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Limit deviation temperature sensor	≤ ± (0.15 + 0.002xITI) K
Housing material	alu-cast coating / thermoplastic polymer
Noise without element	52 dB(A)
Dimensions (W x H x D)	89 x 237 x 191 mm
Weight	3.9 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
RS 232 interface	yes
USB interface	USB-C
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	186 W
