Product Code/SKU
Code
0010007543
Descriptions
Bioreactor Habitat Ferment

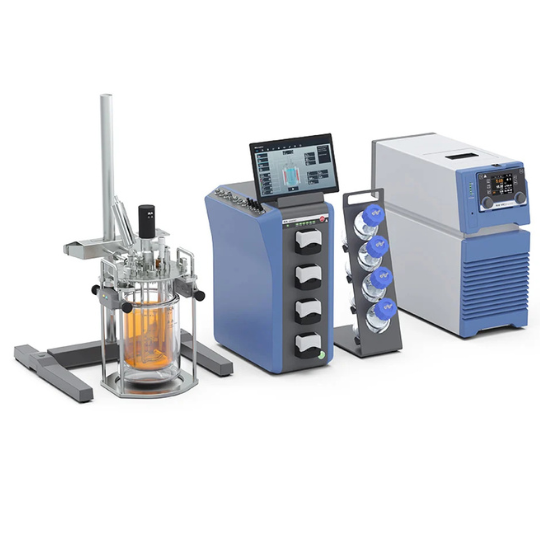

HABITAT research is a smart benchtop bioreactor and fermenter from IKA, designed for both cell culture and microbial fermentation. As the first bioreactor with a lid stand, it ensures ergonomic working and a well-organized laboratory, ideal for various bioprocessing applications.
To operate HABITAT research, you only need a control unit package and a vessel package. For sensitive mammalian cell culture techniques, select the cell variant, with gassing rates from 0 - 2000 cc/min. For microbial fermentation, we recommend the ferment variant, with gassing rates of 0 - 20,000 cc/min. The photobioreactor version with LED panels is perfect for photosynthetic organisms.
Each package offers precise temperature control and pH control, essential for optimal cell growth and fermentation processes. The suffix 'cct' in each package indicates connection options for three additional sensors: turbidity, CO2, and conductivity, enhancing your ability to monitor cell culture media and fermentation progress.

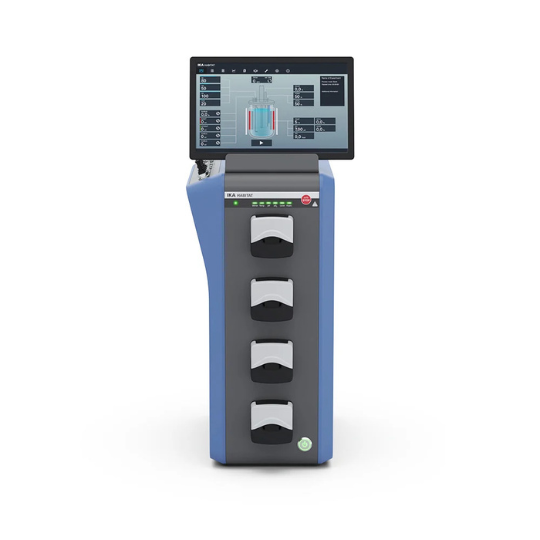

The HABITAT ferment control tower offers an optimized bioreactor-solution for fermentation applications, enabling precise monitoring and control of fermentation processes. It consists of a control unit with comprehensive connectivity options for gas supply, liquid addition, multi-parameter sensors, and temperature regulation, along with a user-friendly tablet interface for seamless bioreactor operation and control.
Scope of delivery
- HABITAT ferment S099
- Tablet with software for bioreactor
- HA.pl. Peltier cooling element
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Controller | Fermenter |
| Operating mode | timer, continuous and program operation |
| Display | Tablet PC |
| Operation | touch screen |
| Data memory size | 32 GB |
| Auto restart after power failure | yes |
| Ethernet interface | yes |
| Single use reactor interface | yes |
| Thermostat interface | yes |
| Ext. pump interface | yes |
| Gravimetric feeding | yes |
| Exponential feeding | yes |
| Biomass feeding | yes, with Excell Sensor |
| OPC UA interface | yes |
| Filter heater | yes |
| LED light panel | Accessory |
| Stirring motor | yes |
| Calibration guide temperature | yes |
| Calibration guide pH | yes |
| Calibration guide pO2 | yes |
| pH - temperature compensation | yes |
| Mode hose filling | yes |
| Stirrer control mode | off, manual, profile, Cascade-pO2 control, chaotic |
| Speed range | 1 - 2200 rpm |
| Speed deviation >= 100 rpm | ±2 % |
| Speed deviation <= 100 rpm | ±5 rpm |
| Speed display | TFT |
| Reversible direction of rotation | yes |
| Timer | yes |
| Timer display | TFT |
| Time setting range | 1 - 120 min |
| Heating blanket | yes |
| Heat output | 250 W |
| Heat control | TFT |
| Temperature control | PID |
| Working temperature | 5 - 80 °C |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | yes |
| Temperature measuring range | 0 - 100 °C |
| Temperature measurement resolution | 0.1 K |
| Temperature control accuracy | ±0.2 °C |
| Temperature limit min. | 0 °C |
| Temperature limit max. | 110 °C |
| pH measurement | yes |
| pH control mode | off, auto, profile |
| pH value display | TFT |
| pH measuring range | 0 - 14 pH |
| pH measurement resolution | 0.01 pH |
| Accuracy of pH measurement | ±0.02 pH |
| Set resolution pH value | 0.01 pH |
| pH control accuracy | ±0.05 pH |
| Conncetion for pO2 sensor | yes |
| pO2 control mode | off, manual, auto, profile |
| Measurement range pO2 min. | 0 %sat |
| Measurement range pO2 max. | 200 %sat |
| Resolution pO2 measurement | 0.01 %sat |
| Accuracy of pO2 measurement | ±0.3 %sat |
| pO2 control accuracy | 0.3 %sat |
| Exhaust Gas Analyzer | yes, with Blue Vary Sensor |
| OUR,CER,RQ calculation | yes, with Blue Vary Sensor |
| RQ feeding | yes, with Blue Vary Sensor |
| Digital pH sensor | yes, with EasyFerm Bio Arc Sensor |
| Measuring Range min. digital pH | 0 pH |
| Measuring Range max. digital pH | 14 pH |
| Accuracy digital pH | ±0.02 pH |
| Digital DO sensor | yes, with OxyFerm FDA Arc |
| Measuring Range min. digital DO | 0 %sat |
| Measuring Range max. digital DO | 200 %sat |
| Accuracy digital DO | ±2 % |
| Optical DO sensor | yes, with VisiFerm RS485-ECS |
| Measuring Range min. optical DO | 0 %sat |
| Measuring Range max. optical DO | 300 %sat |
| Accuracy optical DO | ±1 % |
| Biomass sensor | yes, with CGQ BioR Sensor |
| Measuring Range min. Biomass | 0.5 OD |
| Measuring Range max. Biomass | 50 OD |
| Digital Redox / ORP sensor | yes, with EasyFerm Plus ORP Arc |
| Measuring Range min. digital ORP | -1500 mV |
| Measuring Range max. digital ORP | 1500 mV |
| Digital biomass sensor | yes, with Excell Sensor |
| Measuring Range min. digital biomass | 0 AU |
| Measuring Range max. digital biomass | 6 AU |
| Accuracy digital biomass | ±1 % |
| Viable Cell Density Sensors | yes, with Incyte Sensor |
| Measuring Range min. cell density | 5 x 10^5 cells/mL |
| Measuring Range max. cell density | 8 x 10^9 cells/mL |
| Accuracy cell density | ±1 % |
| Gas in connection Air | 6 mm |
| Gas out connection Air | 6 mm |
| Gas in connection O2 | 6 mm |
| Gas out connection O2 | 6 mm |
| Gas in connection N2 | 6 mm |
| Gas out connection N2 | 6 mm |
| Gas in connection CO2 | 6 mm |
| Gas out connection CO2 | 6 mm |
| Aeration mode | continuous & automatic |
| Display flowrate | l/min, cc/min |
| Input pressure | 200 - 3000 mbar |
| Pressure out min. | 200 mbar |
| Pressure out max. | 1000 mbar |
| Flowrate Air min. | 100 cc/min |
| Flowrate Air max. | 20000 cc/min |
| Flowrate O2 min. | 100 cc/min |
| Flowrate O2 max. | 20000 cc/min |
| Flowrate N2 min. | 100 cc/min |
| Flowrate N2 max. | 20000 cc/min |
| Flowrate CO2 min. | 100 cc/min |
| Flowrate CO2 max. | 20000 cc/min |
| Measuring and control accuracy of the gas control units | ±2 % fsr |
| Peristaltic pump | yes |
| Numbers of pump headsc | 4 |
| Pump head function | Acid, Base, AntiFoam, Level |
| Pump head | Watson Marlow 114DV |
| Number of pump tubes | 4 |
| Number of pump rollers | 4 |
| Flow rate min | 0.3 ml/min |
| Flow rate max | 270 ml/min |
| Flow rate control accuracy | ±0.3 ml/min |
| Pump Speed min. | 33 rpm |
| Pump Speed max | 400 rpm |
| Pump reversible direction of rotation | yes |
| Pump speed display | TFT |
| Inner tube diameter min. | 0.5 mm |
| Inner tube diameter max. | 4.8 mm |
| Tube outer diamter min. | 4.1 mm |
| Tube outer diamter max. | 8.4 mm |
| Tube material | Silicone |
| Tube hardness | 50 - 60 Shore A |
| Dimensions (W x H x D) | 224 x 624 x 405 mm |
| Weight | 14 kg |
| Packing unit | 1 pcs |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| USB interface | USB-B |
| WiFi Interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 300 W |
| Power input max. | 1100 W |
| Power input standby | 10 W |
| Fuse | 2x T5.0A 250V |
