Product Code/SKU
Code
0020003549
Descriptions

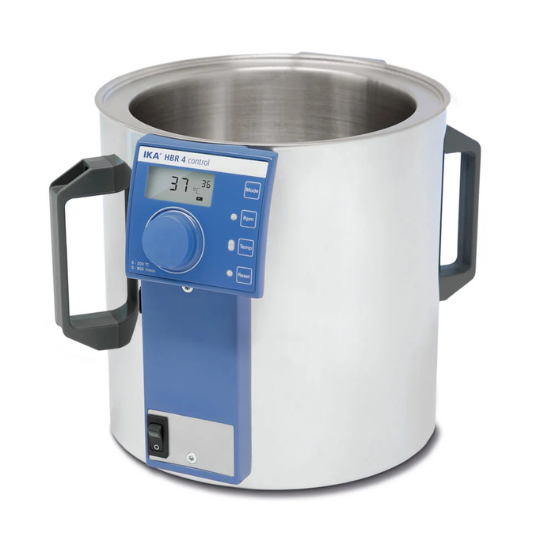

Heating Baths HBR 4 control
The heating bath is noted for Cylindrical bath shape. Heat transfer media can be low-viscous oil (50 mPas) or water (H2O) and useful volume: approx. 4 l. Heating bath can be operated with an external temperature sensor for temperature control directly in the medium.
Scope of delivery
- HBR 4 control
- PT 1000.60 Temperature sensor, stainless steel
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Heat output | 1000 W |
| Heating temperature range | room temp. - 200 °C |
| Heat control | stepless |
| Set temperature resolution | ±1 K |
| Controller oscillation (3 l water / 90 °C) | ±1 K |
| Controller oscillation (3l Silicone oil / 50mPas / 150°C) | ±2 K |
| Speed display | LCD |
| Speed adjustment | stepless |
| Speed range | 150 - 800 rpm |
| Motor rating input | 5 W |
| Motor rating output | 1 W |
| Filling volume max. | 4 l |
| Filling point min. | 20 mm |
| Material in contact with medium | stainless steel 1.4301 |
| Connection for ext. temperature sensor | PT1000 |
| Adjustable safety circuit | 50 - 210 °C |
| Class designation acc. DIN 12876 | II |
| Outer diameter | 250 mm |
| Inner diameter | 200 mm |
| Outer height | 250 mm |
| Inner height | 160 mm |
| Dimensions (W x H x D) | 340 x 250 x 340 mm |
| Weight | 5.6 kg |
| Permissible ambient temperature max. | 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 1020 W |
