Product Code/SKU
Code
0003940000
Descriptions

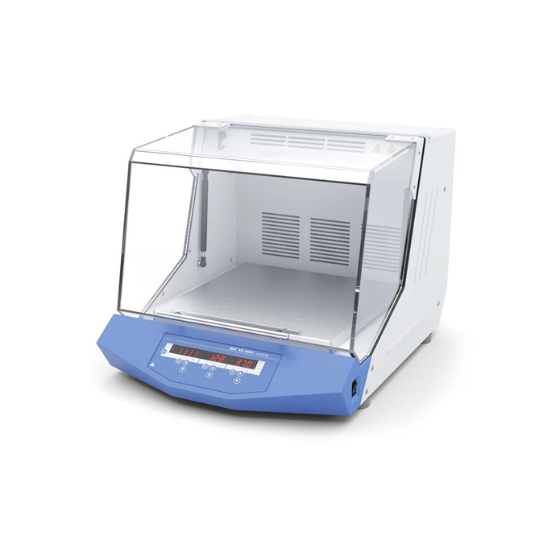

Innovative incubator shaker design allowing unattended operation in a temperature-controlled environment. Controls with antimicrobial coating for reduction of bacteria. Electronic timer switch: 0 - 999 h (set by the minute or by the hour). All functions can be controlled and documented with labworldsoft®.
Scope of delivery
- KS 3000 ic control
- PT 1000.80 Temperature sensor, stainless steel
- Clamping screws short (4 pcs.)
- USB A-B Cable
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Type of movement | orbital |
| Shaking stroke | 20 mm |
| Permissible shaking weight (incl. attachment) | 7.5 kg |
| Motor rating input | 45 W |
| Motor rating output | 10 W |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 10 rpm |
| Speed range | 10 - 500 rpm |
| Speed display | LED |
| Speed deviation | 1 % |
| Speed adjustment | 1 RPM steps |
| Timer | yes |
| Timer display | 7 segment LED |
| Time setting min. | 1 s |
| Time setting range | 1 - 59940 min |
| Operating mode | timer and continuous operation |
| Heating temperature range | room temp. +5° - 80 °C |
| Heat output | 1000 W |
| Set temperature resolution | ±0.1 K |
| Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C | ±0.5 K |
| Temperature display | yes |
| Temp. stability (0,2l H2O; RT 25°C, T=37°C) | ±0.1 K |
| Operating area inner chamber | 330 x 330 x 258 mm |
| Total volume inner chamber | 50 l |
| Raw material housing | Sheet metal powder coat |
| Raw material hood | PMMA |
| Raw material front foil | polyester |
| Raw material front panel | ABS painted |
| Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C) | ±0.05 K |
| Temperature homogenity (5 vessel 0.5 L; RT 25°C, T=37°C) | ±0.5 K |
| Height with open hood | 875 mm |
| Dimensions (W x H x D) | 465 x 430 x 695 mm |
| Weight | 35 kg |
| Permissible ambient temperature | 15 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 1120 W |
