Descriptions

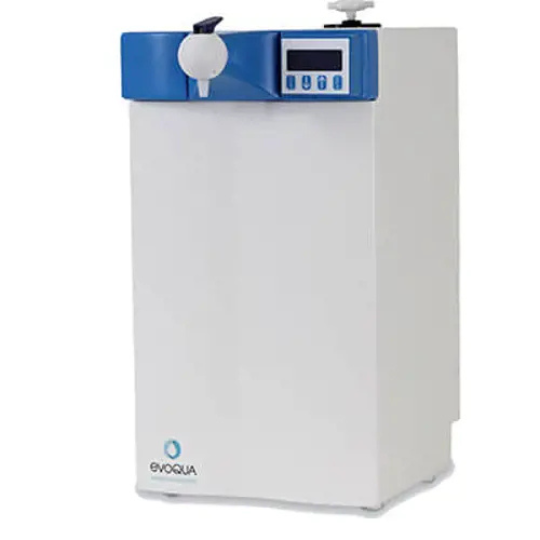

The LaboStar® RO DI series produce high quality water with very low energy consumption. The use of “low energy“ membranes enable a very efficient and economical operation. All LaboStar RO DI systems are equipped with a builtin 7 l storage tank. Pure water is collected in the tank and is recirculated by an integrated pump. LaboStar RO DI is equipped with an additional final DI cartridge. This cartridge polishes the RO water to Type II quality < 0.1μS/cm. The unit offers two extraction ports: water canbeextractedunderpressure fromthe Point-of-use dispenser orfrom theoutlet onthe back of theunit.
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| System Performance : | |
| Delivery flow rate@ 15°C | 10 I/h |
| Delivery flow rate@ 25°C | 13 I/h |
| Salt rentetion | 98 % |
| Bacteria rentetion | 99 % |
| Particle retention | 99 % |
| Permeate conductivity | 0.1 μS/cm |
| Bacteria | < 0.1 cfu/ml |
| Particles > 0.2 μm | < 1 per ml |
| Max delivery flow rate | 1.2 I/min |
| Delivery flow rate @0.5 bar | 70 I/h |
| Delivery flow rate @1.0 bar | 65 I/h |
| Feed Water Specifications : | |
| Pressure | 0.1-5 bar |
| Conductivity | 2000 μS/cm |
| Silt density index | <12** SDI |
| Free Chlorine | < 0.5 mg/l |
| Total iron | < 0.1 mg/l |
| CO 2 | < 15 mg/l |
| Temperature | 5 - 35 °C |
| Ambient temperature | 5 - 35 °C |
| Shipping weight | 24 kg |
| Power supply | 100 - 240 V/ 50 - 60 Hz |
| Dimensions (H x W x D) | 535 x 290 x 400 mm |
