Product Code/SKU
Code
0030000717
Descriptions

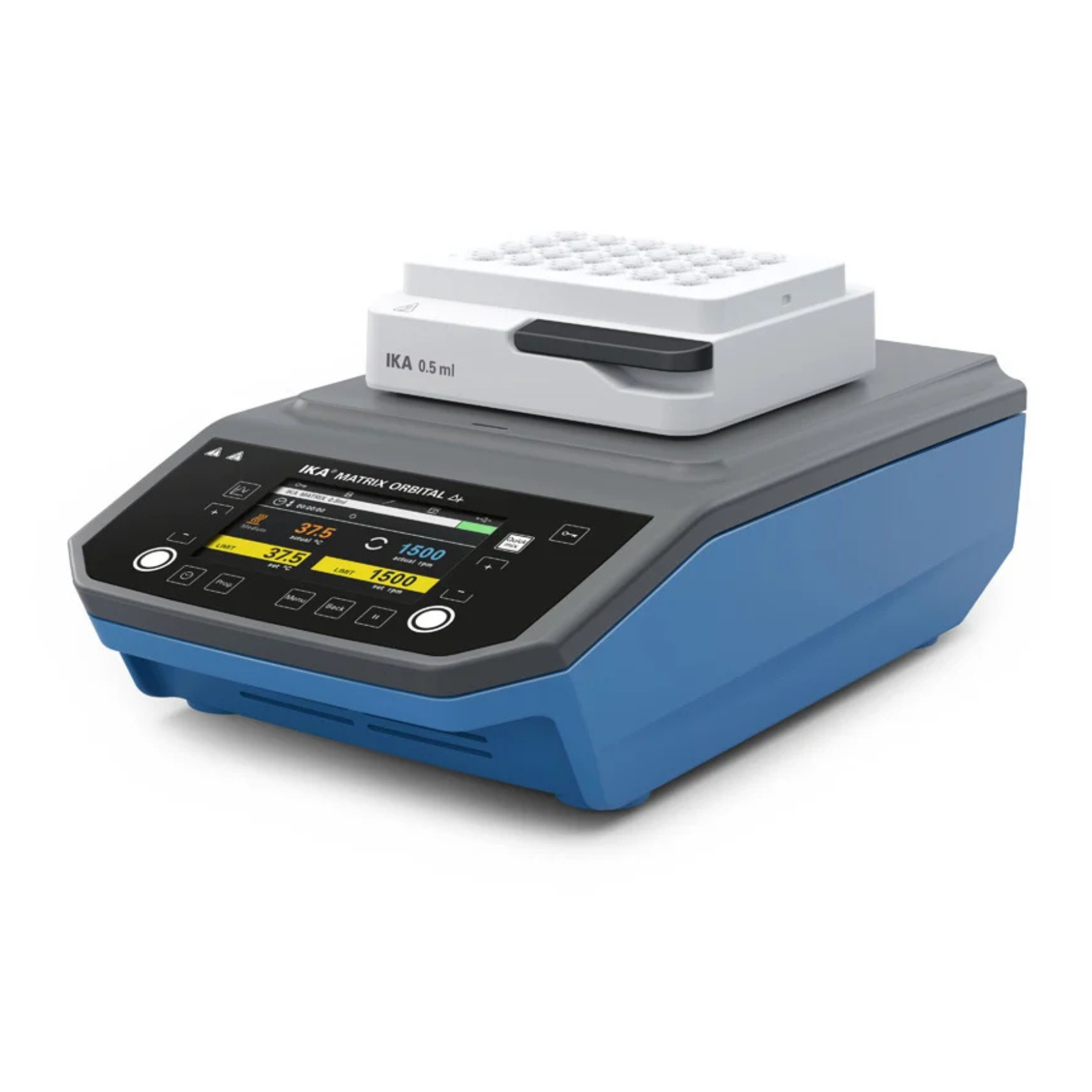

Matrix Delta plus heats and cools reliably with variable inserts. Whether blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays - reaction vials and plates with even the smallest volumes are reliably tempered in all laboratory applications. Reduced waiting time through fast heating and cooling rates of up tp 5.5 °C/min (heating) or 2 °C/min (cooling, at set-point temperature between ambient temperature and 30 °C below ambient temperature). The device is ideally suited for numerous applications in laboratories, such as: Tempering of samples, Synthesis of cDNA, Enzyme-catalysed linking of RNA or DNA (ligation), Gentle thawing of sample material, Structural change of DNA, RNA and proteins (denaturation), ELISA assays.
Scope of delivery
- MATRIX Delta Plus
- USB A-B Cable
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Maximum load | 0.3 kg |
| Permissible ON time | 100 % |
| Timer | Yes |
| Timer display | TFT |
| Time setting min. | 1 s |
| Time setting min. | 6000 min |
| Operating mode | timer, continuous and program operation |
| Working with microtiter plates | Yes |
| Working temperature min. | room temp. -30 ±2 °C |
| Temperature setting range min. | -10 °C |
| Heating temperature max. | 110 °C |
| Heat output | 100 W |
| Heat control | TFT |
| Set temperature resolution | ±1 °C |
| Temperature control accuracy | ±0.5(@ 20°C ... 45°C) °C |
| Temperature stability | 0.5 °C |
| Temperature homogeneity | ±0.5(@ 20°C ... 45°C) °C |
| Heating rate | 5.5 °C/min |
| Temperature display | Yes |
| Cooling Rate | 2 °C/min |
| Cooling Power | 72 W |
| embedded cooling unit | Yes |
| Number of exchangable attachments | 10 |
| Fixed safety circuit | 145 °C |
| Dimensions (W x H x D) | 216 x 127 x 351 mm |
| Weight | 9.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | Yes |
| USB interface | USB-B |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 230 W |
| Fuse | 2x T4A 250V |
