Product Code/SKU
Code
0030000627
Descriptions

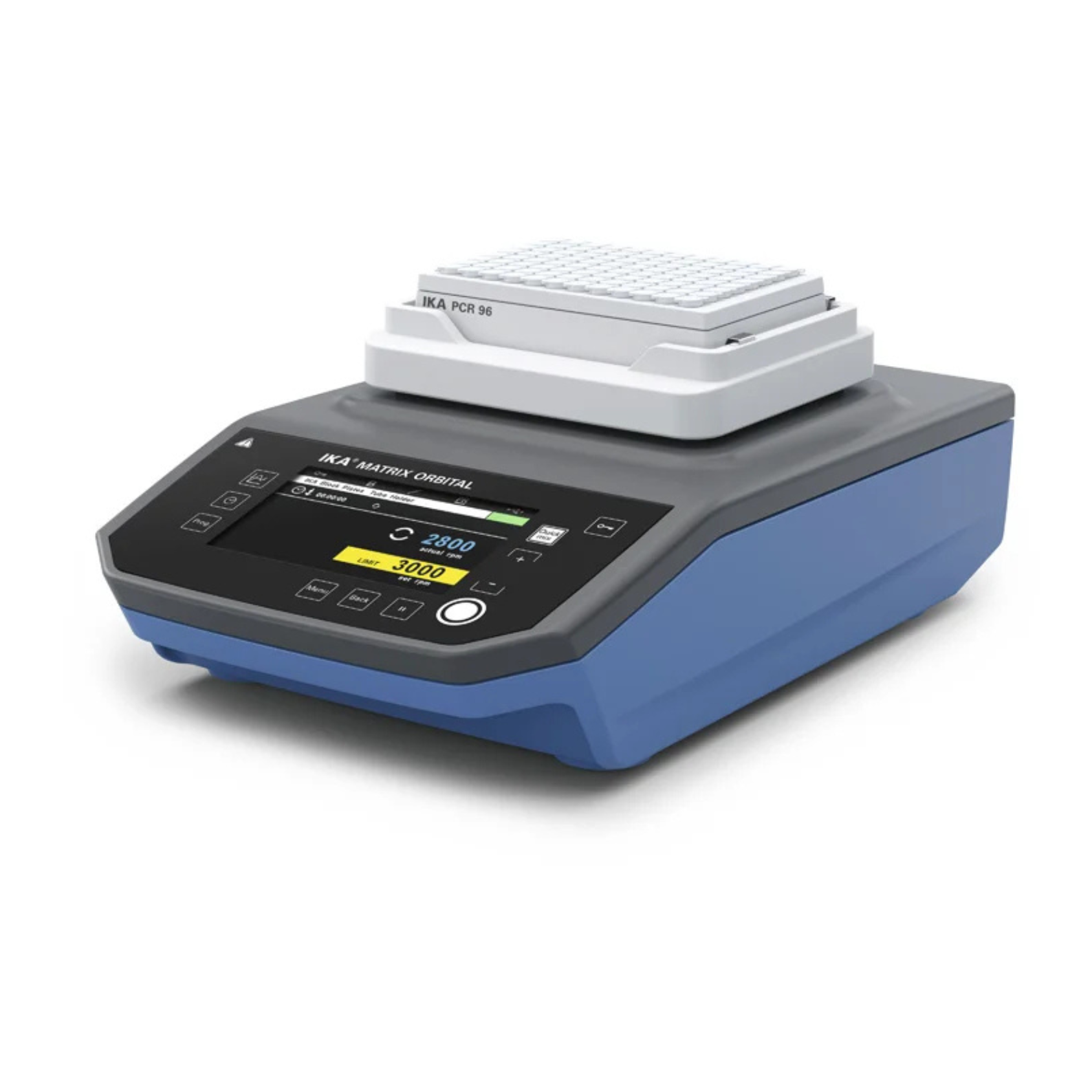

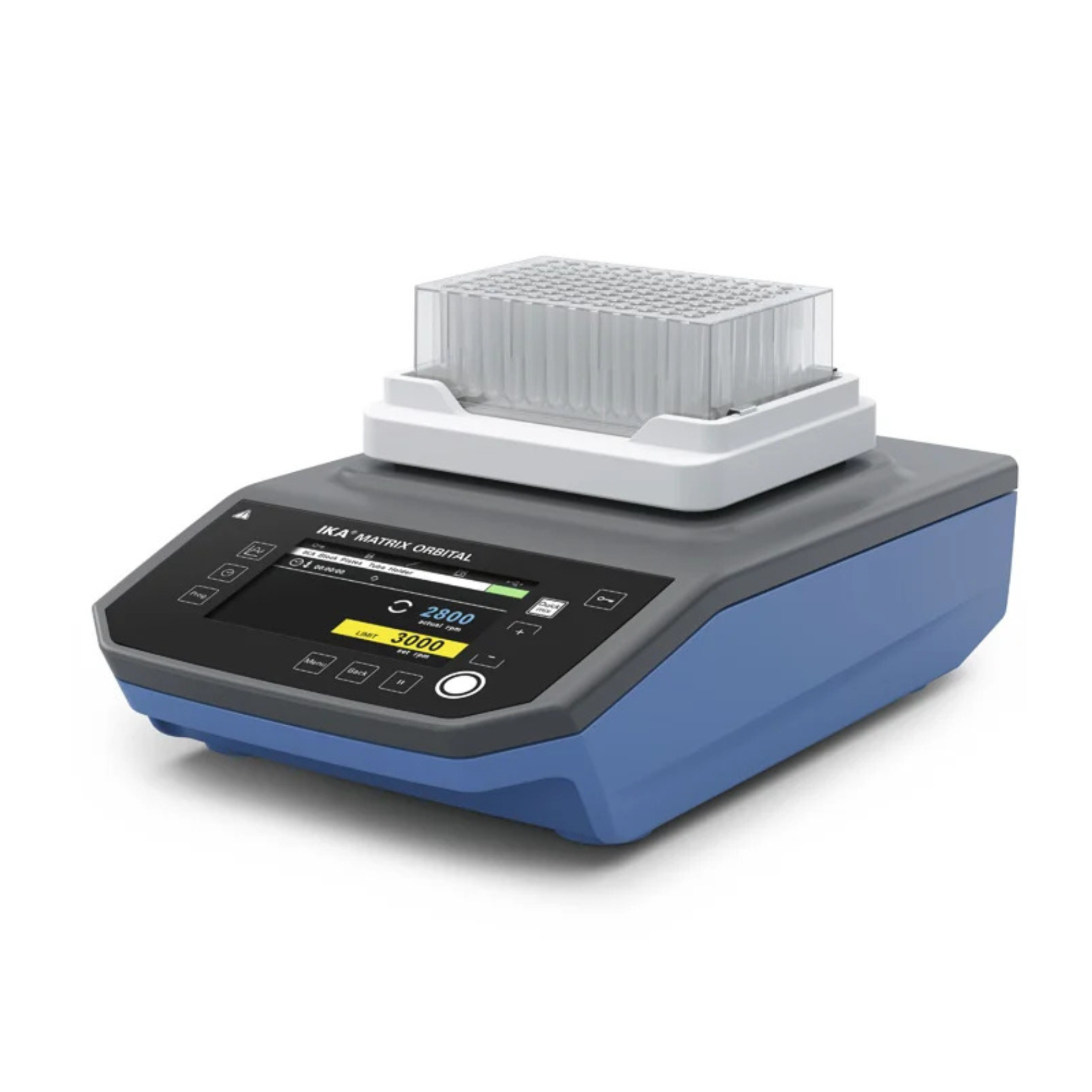

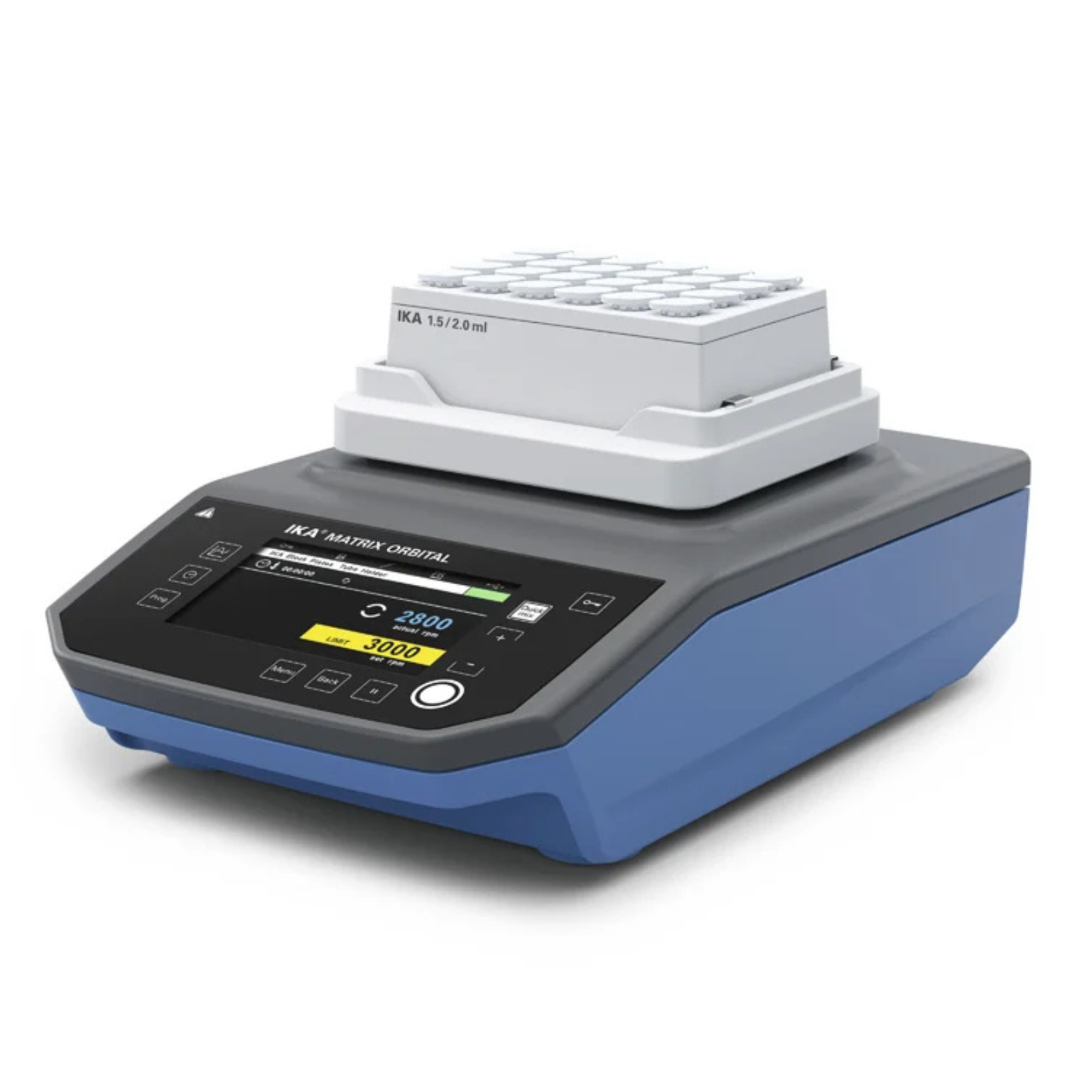

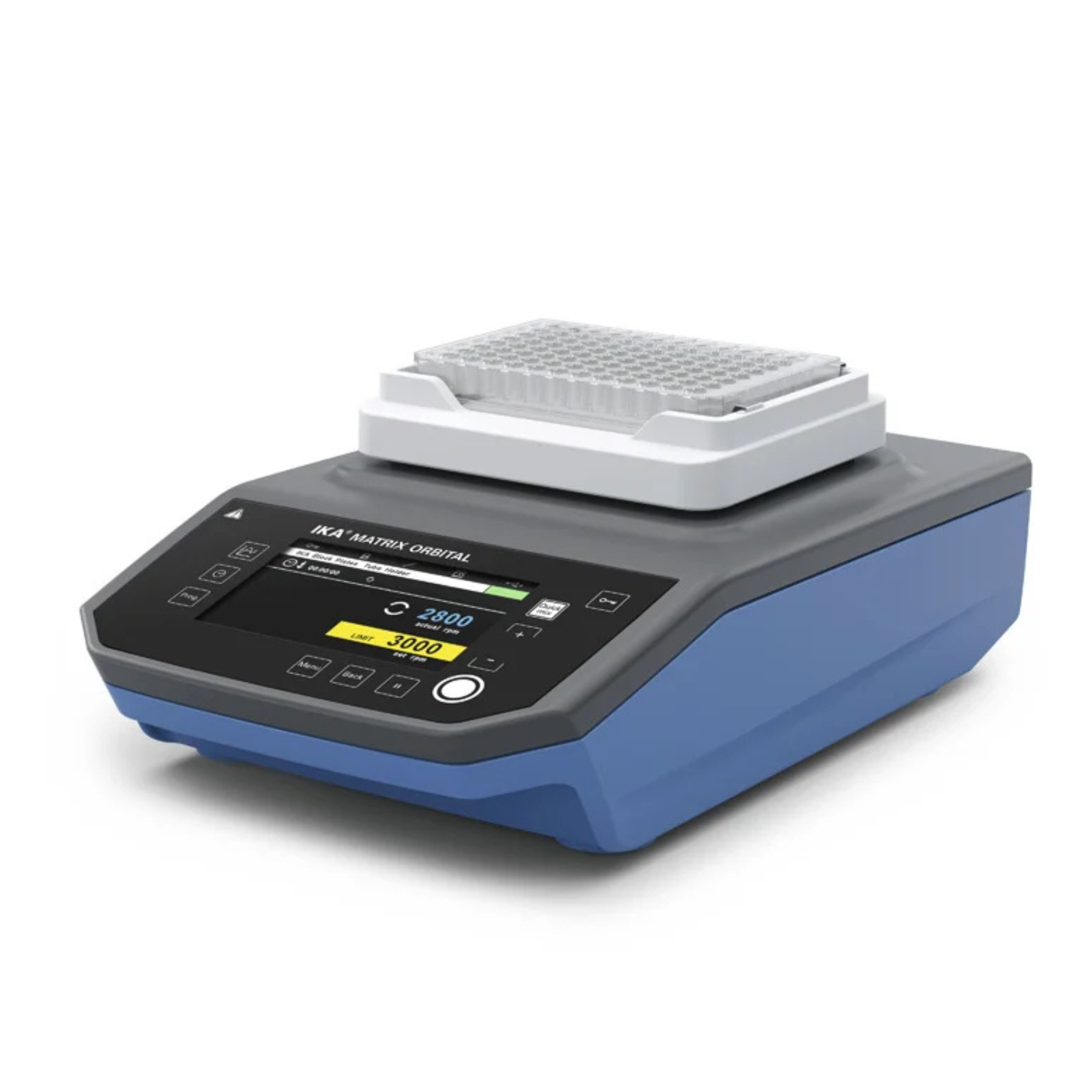

IKA Matrix Orbital mixes and is suitable for variable inserts. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result. Speeds of up to 3,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively.
Scope of delivery
- MATRIX Orbital
- MX insert PCR96
- MX insert 0.5 ml
- MX insert 1.5/2.0 ml
- USB A-B Cable
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Type of movement | orbital |
| Shaking stroke | 3 mm |
| Maximum load | 0.3 kg |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 300 rpm |
| Speed range | 0 - 3000 rpm |
| Speed display | TFT |
| Speed deviation | ±30 rpm |
| Speed adjustment | 10 RPM Steps |
| Timer | yes |
| Timer display | TFT |
| Time setting min. | 1 s |
| Time setting max. | 6000 min |
| Operating mode | timer and continuous operation |
| Working with microtiter plates | yes |
| Number of reaction vessels | 24x 0.5 ml / 24x 1.5 ml / 24x 2.0 ml |
| Number of PCR plates | 1 |
| Number of Deep Well Plates (DWP) | 1 |
| Dimensions (W x H x D) | 200 x 120 x 320 mm |
| Weight | 7.2 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 80 W |
| Power input max. | 80 W |
| Fuse | 2x T4A 250V |
