Product Code/SKU
Code
0030000750
Descriptions

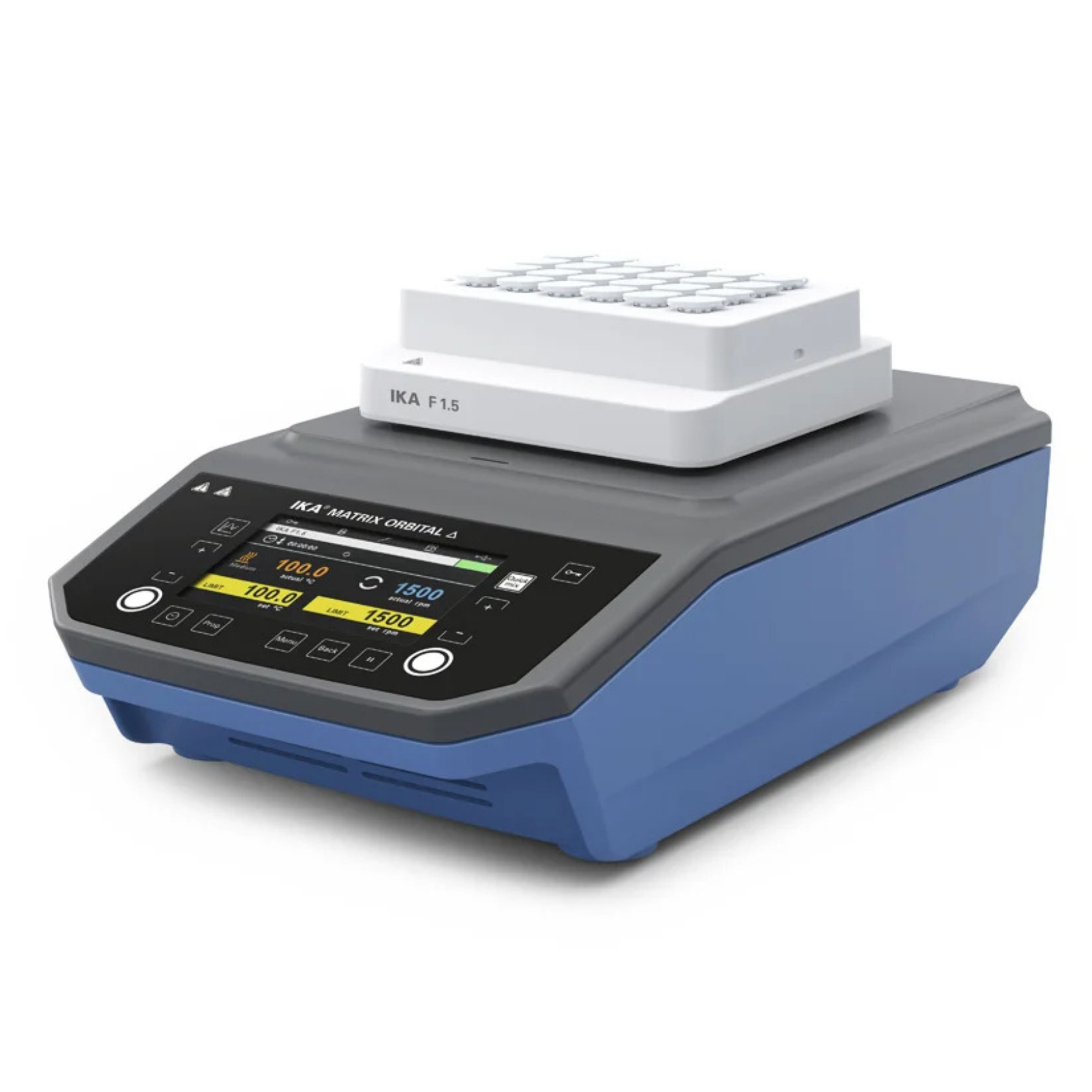

The IKA MATRIX Orbital Δ F1.5 with fixed attachment mixes and heats 24 x 1.5 ml microcentrifuge tubes / reaction vessels. It is compatible with 1.5 ml EPPENDORF TUBES®*. Speeds of up to 1,500 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively.
Scope of delivery
- MATRIX Orbital Delta F1.5
- USB A-B Cable
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Type of movement | orbital |
| Shaking stroke | 3 mm |
| Maximum load | 0.3 kg |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 300 rpm |
| Speed range | 0 - 1500 rpm |
| Speed display | TFT |
| Speed deviation | ±30 rpm |
| Speed adjustment | 10 RPM Steps |
| Timer | yes |
| Timer display | TFT |
| Time setting min. | 1 s |
| Time setting max. | 6000 min |
| Operating mode | timer, continuous and program operation |
| Heating temperature range | room temp. +4° - 100 °C |
| Heat output | 100 W |
| Heat control | TFT |
| Set temperature resolution | ±1 °C |
| Temperature control accuracy | ±0.5 °C |
| Temperature stability | 0.5 °C |
| Temperature homogeneity | ±0.5 (@ 20°C ... 45°C); ±1.5 °C |
| Heating rate | 11 °C/min |
| Temperature display | yes |
| Number of reaction vessels | 24x 1.5 ml |
| Dimensions (W x H x D) | 216 x 158 x 351 mm |
| Weight | 9.2 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 240 W |
| Power input max. | 240 W |
| Fuse | 2x T4A 250V |
