Product Code/SKU
Code
0030000731
Descriptions

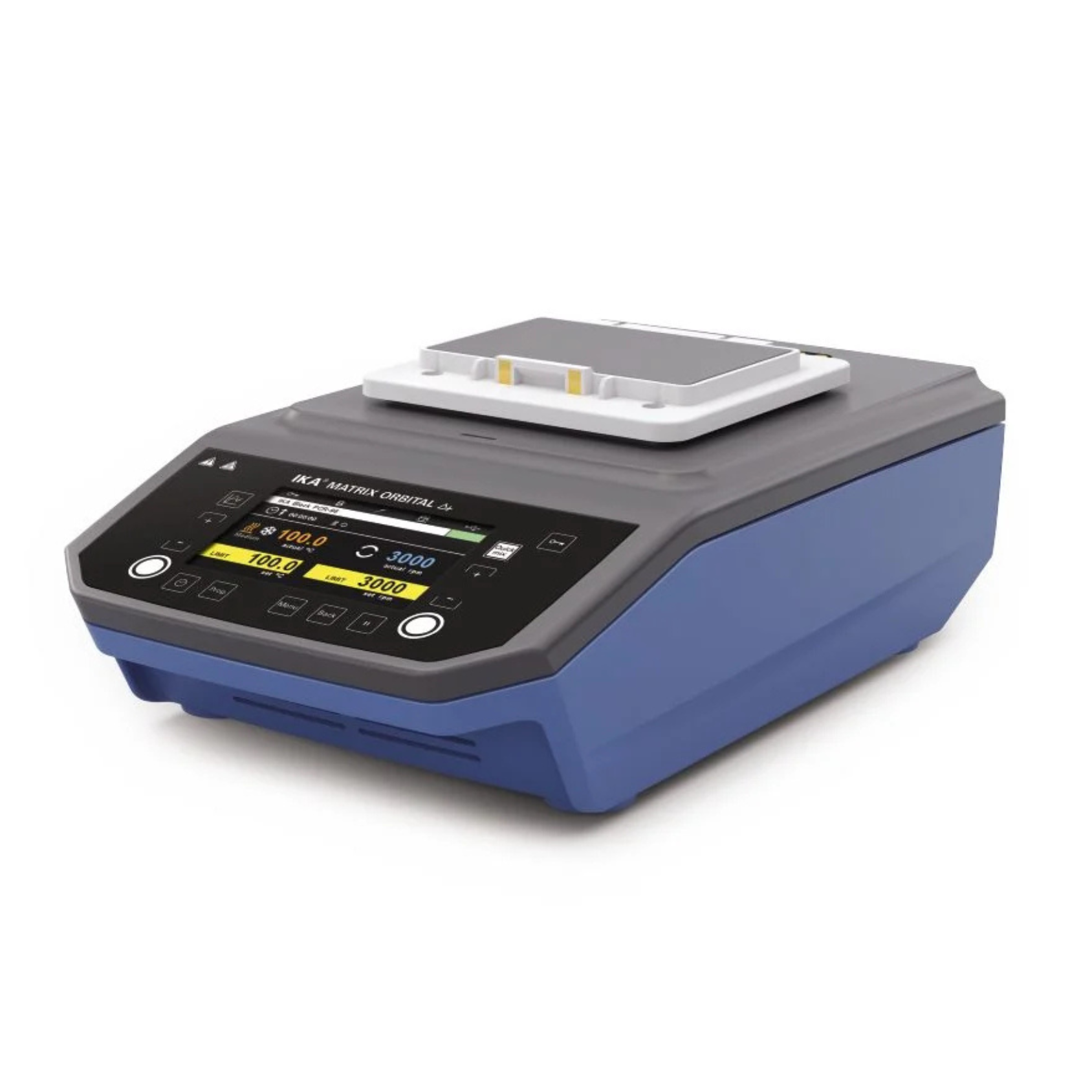

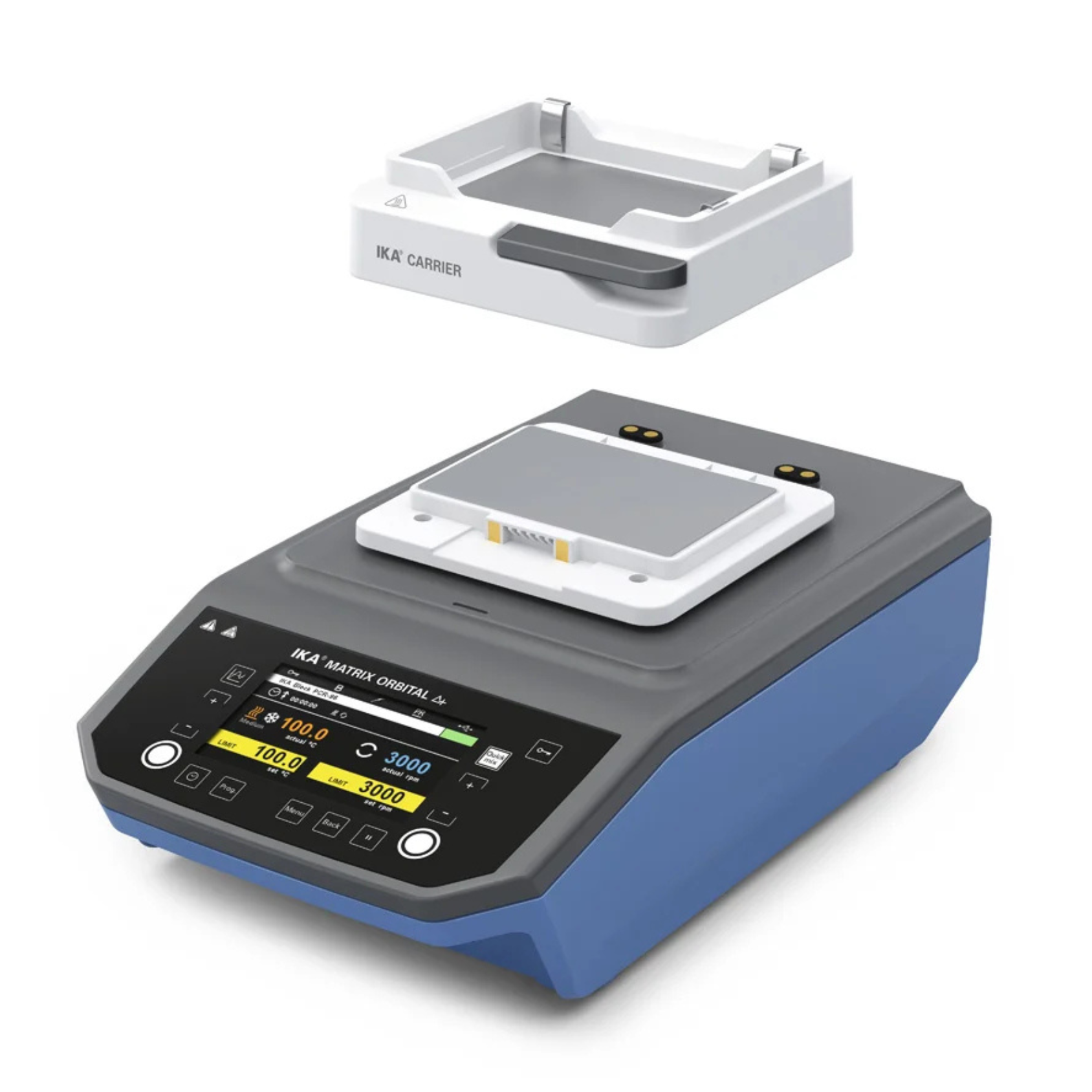

MATRIX Orbital Delta plus comes with numerous user-friendly features such as Quick and effective mixing of liquids with up to 3,000 rpm and 3 mm shaker diameter, Reduced waiting time through fast heating and cooling rates of up to 6 °C/min (heating) or 2.5 °C/min at set-point temperature above the ambient temperature (cooling, 0.5 °C/min at set-point temperature between ambient temperature and 15 °C below ambient temperature). The device is ideally suited for numerous applications in laboratories, such as Tempering / mixing of samples, Synthesis of cDNA, Enzyme-catalysed linking of RNA or DNA (ligation), Lysis reactions and Structural change of DNA, RNA and proteins (denaturation).
Scope of delivery
- MATRIX Orbital Delta Plus
- USB A-B Cable
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Type of movement | orbital |
| Shaking stroke | 3 mm |
| Maximum load | 0.3 kg |
| Motor rating output | 88 W |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 300 rpm |
| Speed range | 0 - 3000 rpm |
| Speed display | TFT |
| Speed deviation | ±30 rpm |
| Speed adjustment | 10 RPM Steps |
| Timer | yes |
| Timer display | TFT |
| Time setting min. | 1 s |
| Time setting max. | 6000 min |
| Operating mode | timer, continuous and program operation |
| Working with microtiter plates | yes |
| Working temperature min. | room temp. -15 °C |
| Temperature setting range min. | 1 °C |
| Heating temperature max. | 100 °C |
| Heat output | 100 W |
| Heat control | TFT |
| Set temperature resolution | ±1 °C |
| Temperature control accuracy | ±0.5(@ 20°C ... 45°C) °C |
| Temperature stability | 0.5 °C |
| Temperature homogeneity | ±0.5(@ 20°C ... 45°C) °C |
| Heating rate | 6 °C/min |
| Temperature display | yes |
| Cooling Rate | 2.5 °C/min |
| Cooling Power | 72 W |
| Number of exchangable attachments | 10 |
| Dimensions (W x H x D) | 216 x 127 x 351 mm |
| Weight | 10 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 230 W |
| Power input max. | 230 W |
| Fuse | 2x T4A 250V |
