Product Code/SKU
Code
0025002638
Descriptions
Batch Milss MultiDrive basic
Crushing dispersers are versatile tools used in various industries for tasks like homogenizing, emulsifying, suspending, and particle reduction. They are particularly effective in breaking down materials into finer particles or mixing substances evenly. Common applications include:
- Laboratory Use: Preparing samples for analysis, such as effluent homogenization or PCR analysis.
- Industrial Processes: Crushing and dispersing materials under vacuum pressure or high temperatures.
- Pharmaceuticals: Dissolving tablets and ensuring sterility in sample preparation.

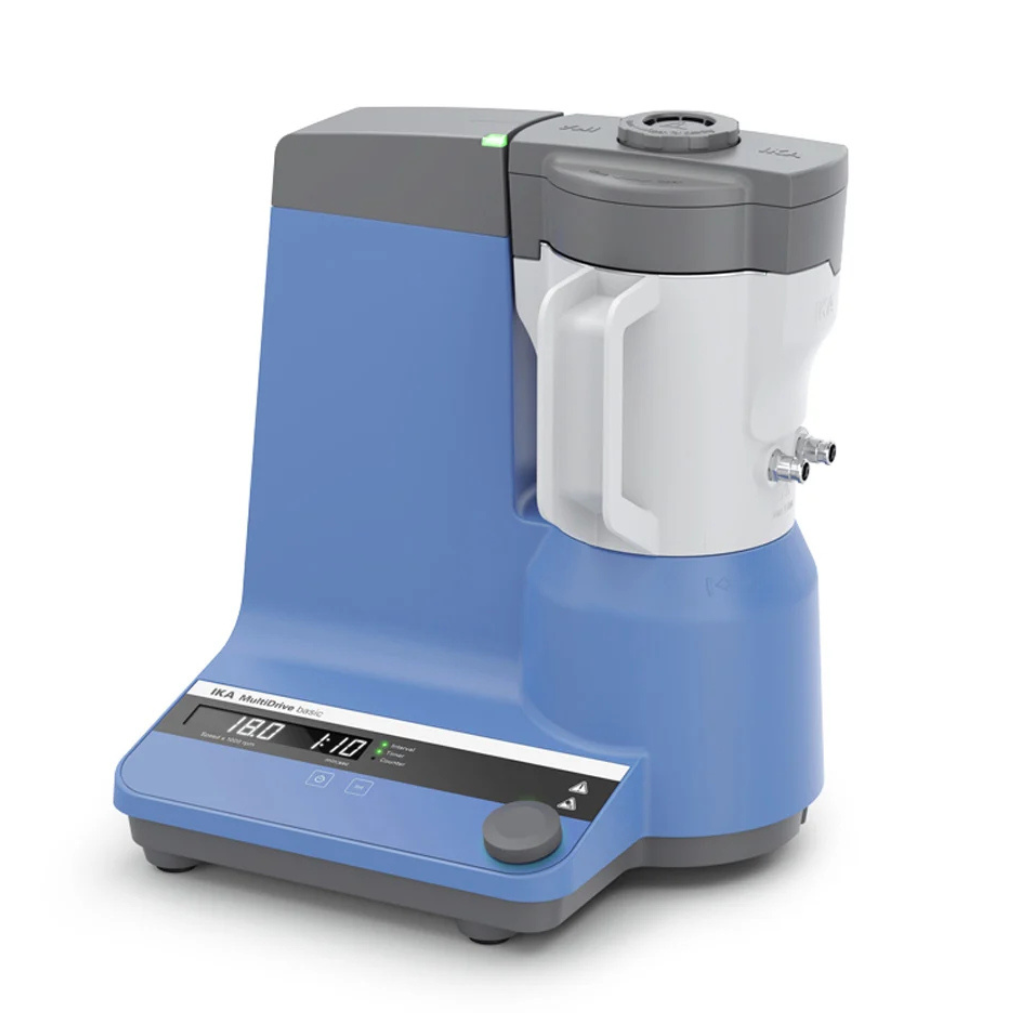

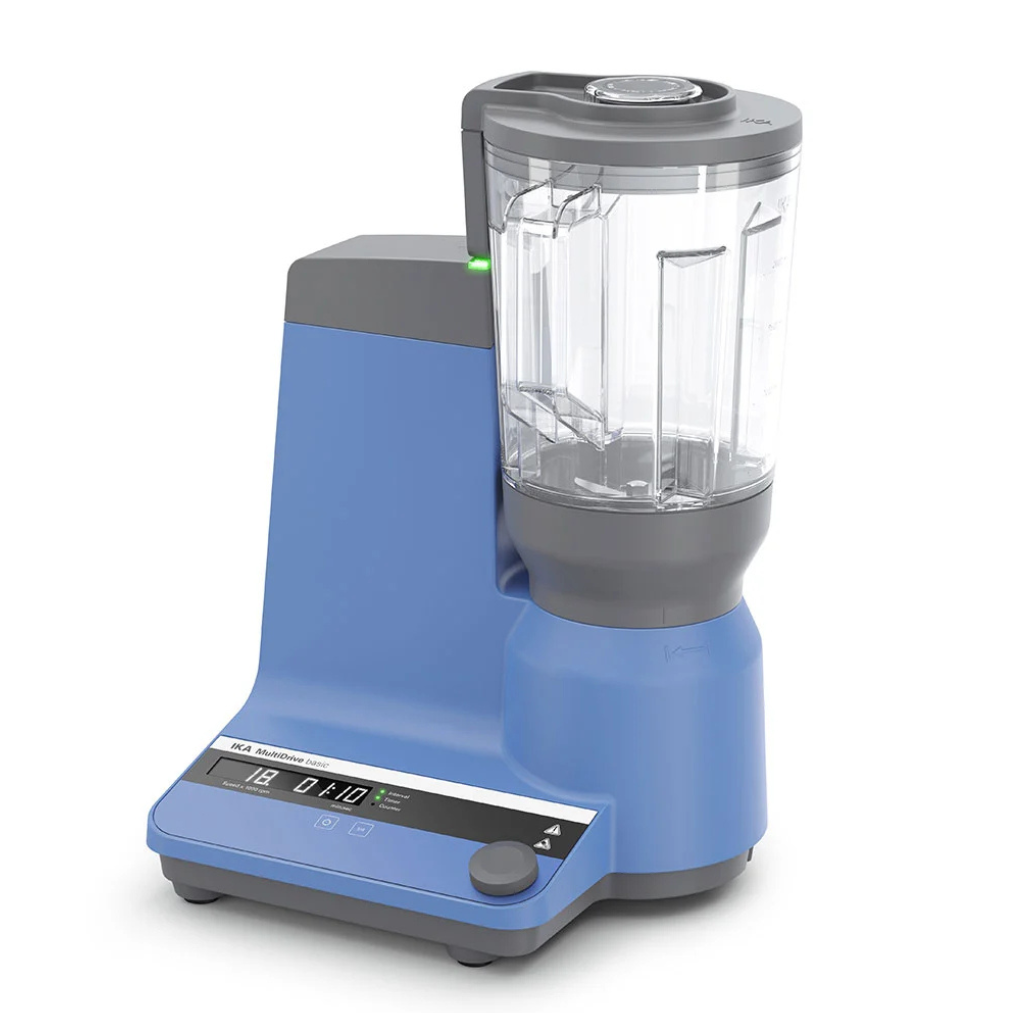

IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available (vessels not included in delivery). With MultiDrive basic it is possible to mix or grind. There is a USB interface available for easy actuation and documentation. Excellent crushing performance is guaranteed by a combination of variable rotational speeds, ranging from 3000 rpm to 20 000 rpm, and a 1000 Watt output.
Scope of delivery
- IKA MultiDrive basic
- Socket wrench
- Disassembly tool 1
- Disassembly tool 2
- Cleaning brush
- USB Cable - USB A to Micro-B, 2 m
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Process type | batch |
| Operating principle | cutting/impact/blending/dispersing |
| Motor rating input | 1000 W |
| Motor rating output | 800 W |
| Speed range | 3000 - 20000 rpm |
| Speed deviation | ±5 % |
| Power-ON time | 5 min |
| Power-OFF time | 10 min |
| Motor principle | Brushless DC |
| Display | 7 segment LED |
| Vessels detection | yes |
| Dimensions (W x H x D) | 300 x 350 x 250 mm |
| Weight | 8.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 31 |
| USB interface | Micro-USB |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 1000 W |
