Product Code/SKU
Code
W3T553434
Descriptions

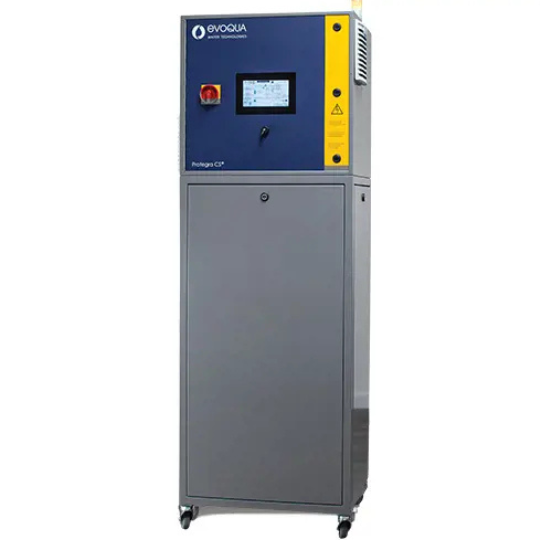

The Protegra CS® Pro RO EDI system is a high-performance purification solution for deionised water applications. Featuring industry-leading reverse osmosis technology and a high-performance Ionpure® CEDI cell, the system maintains water quality at the required standard. The system is ideal for a range of laboratory and industrial applications. The water quality achievable is as low as 0.055μS/cm at 15°C for flow rates up to 1000 liters per hour.
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Delivery flow rate (l/h) | 750 |
| Pure water quality (μS/cm) | < 0.1 |
| Typical pure water quality (μS/cm) | < 0.07 |
| Yield max. (%) | 75 |
| Feed water specifications : | |
| Pressure (bar) | 2.5 - 6 |
| Conductivity (μS/cm) | < 1400 |
| Silt density index (SDI) | < 3 |
| Free chlorine (mg/l) | < 0.1 |
| Iron (mg/l) | < 0.1 |
| SiO2 (mg/l)* | < 10 |
| CO2 (mg/l)* | < 10 |
| Temperature (°C) | 5 - 30 |
| Hardness (°dH) | < 1ppm |
| Technical Data : | |
| Power consumption (kW) | 3.0 |
| Power supply | 3/N/PE 400 VAC 50/60 Hz |
| Dimensions (H × W × D) (mm) | 1795 x 650 x 665 |
| Mounting | Feet |
| Shipping weight (kg) | 275 |
