Descriptions
Lingkup pengiriman :

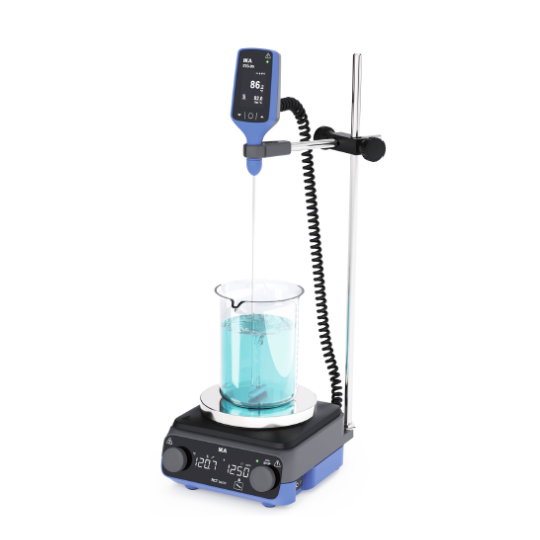

- RCT basic
- PT 1000.60 Temperature sensor, stainless steel
- ETS-D5 Electronic contact thermometer
- H 16 V Support rod
- H 38 Holding rod
- H 44 Boss head clamp
- H 80 Temperature sensor holder
- Screwdriver
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Satuan suhu | ° C |
|---|---|
| Rentang Temperatur pemanasan [°C] | Temperatur ruangan. + pemanasan sendiri perangkat - 310 |
| Kontrol panas | Control knob (Rotating / Pressing) |
| Resolusi layar [K] | 0.1 |
| Rentang pengaturan temperatur [°C] | 0 - 310 |
| Resolusi pengaturan suhu pelat pemanas [K] | 1 |
| Tambahan koneksi sensor temperatur | PT1000, ETS-D5, ETS-D7, PT wireless |
| Resolusi pengaturan suhu media [K] | 1 |
| Suhu operasi min. (dengan pendingin eksternal) [°C] | -20 |
| Pengaturan sirkuit pengaman [°C] | 50 - 360 |
| Set-up plate material | Aluminium alloy |
| Set-up plate dimensions [mm] | Ø 135 |
| Penunjuk waktu | Ya |
| Tampilan waktu | LED |
| Pengaturan waktu minimal [s] | 1 |
| Pengaturan waktu maksimal [min] | 5999 |
| pengukuran | pH optional (with ETS-D7, PT wireless) |
| deteksi sensor dalam media | Ya |
| Kisaran pengukuran suhu PT1000 [°C] | -20 - 310 |
| Variasi PT 1000; DIN EN 60751 Kl. A [K] | ≤ ± (0,15 +0,002xITI) |
| Penyimpangan kecepatan (tanpa beban, tegangan nominal, pada 1500rpm + 25 ° C) [%] | ±2 |
| Tingkat pemanasan (1l H2O dalam H1500) [K/min] | 9 |
| Heat control accuracy of heating plate centre without vessel (at 100°C) [K] | ±5 |
| Akurasi kontrol panas dengan ext. | PT1000 (500ml H2O dalam gelas 600ml, batang pengaduk 40mm, 600rp m, 5±00 .°5 C) [K] |
| Akurasi kontrol panas dengan | ETS-D5 (500ml H2O dalam gelas 600ml, batang pengaduk 40mm, 600rpm, 5 0 ° ±C0) . 5[K] |
| Heat control accuracy with ETS-D7 (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C) [K] | ±0.2 |
| Heat control accuracy with PT wireless (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C) [K] | ±0.2 |
| Dimensi (W x H x D) [mm] | 160 x 100 x 200 |
| Berat [kg] | 2.3 |
| Temperatur lingkungan yang dizinkan [°C] | 5 - 40 |
| Kelembapan relatif yang diizinkan [%] | 80 |
| Kelas proteksi sesuai dengan DIN EN 60529 | IP 54 |
| Sambungan RS 232 | Ya |
| Sambungan USB | USB-C |
| Sambungan WPAN | optional (USB WD) |
| Daya/ voltage [V] | 220 - 230 |
| Frekuensi [Hz] | 50/60 |
| Input daya [W] | 820 |
| Siaga input daya [W] | 0.45 |
