Product Code/SKU
Code
0025003742
Descriptions

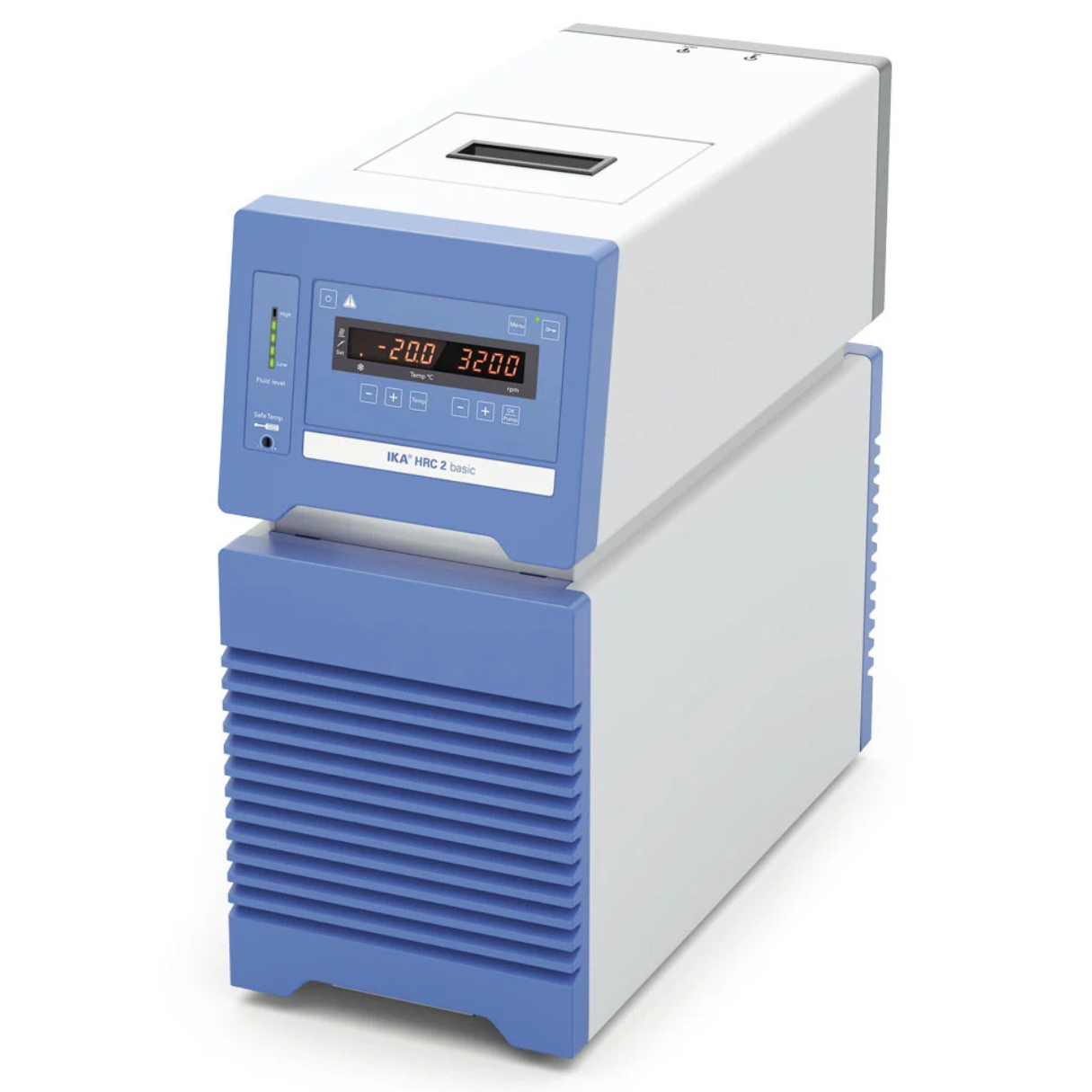

The compact refrigerated and heating circulator HRC 2 basic is renowned for its high energy efficiency, a working temperature powerful infinitelyrange from -20°C to 100°C and a variable pressure and suction pump. Using the external temperature control circuit is possible for up to 2.5 l thermofluid without a refill.
Scope of delivery
- HRC 2 basic
- Hose olive NW 8 (2 pcs.)
- Hose olive NW 12 (2 pcs.)
- Screwdriver (use for safety circuit)
- USB Cable - USB A to Micro-B, 2 m
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Appliance type | Circulation thermostat |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Cooling agent | R134a |
| Cooling agent quantity | 230 g |
| Cooling agent pressure max. | 20 bar |
| Heat output | 1500 W |
| Cooling capacity (@20°C) | 400 W |
| Cooling capacity (@10°C) | 370 W |
| Cooling capacity (@0°C) | 320 W |
| Cooling capacity (@-10°C) | 240 W |
| Cooling capacity (@-20°C) | 130 W |
| Working temperature | -20 - 100 °C |
| Operating temperature min. | -20 °C |
| Temperature display | yes |
| Temperature stability DIN 12876 (@+70°C) | ±0.1 K |
| Temperature stability DIN 12876 (@-10°C) | ±0.1 K |
| Temperature control | PID |
| Working temperature sensor | PT100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 | ±0.1 K |
| Display resolution | 0.1 K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Adjustable safety circuit | 0 - 110 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Filling volume | 1.4 – 4.0 l |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.5 bar |
| Pressure pump (suction side) (0 liter flow) | 0.25 bar |
| Flow rate max. (0 bar back pressure) | 21 l/min |
| Pump connection | M16x1 |
| Calibration option | yes |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Noise level | 52 dB(A) |
| Dimensions (W x H x D) | 220 x 475 x 525 mm |
| Weight | 32.8 kg |
| Permissible ambient temperature | 5 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | Micro USB-B |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 1800 W |
