Product Code/SKU
Code
0004171000
Descriptions

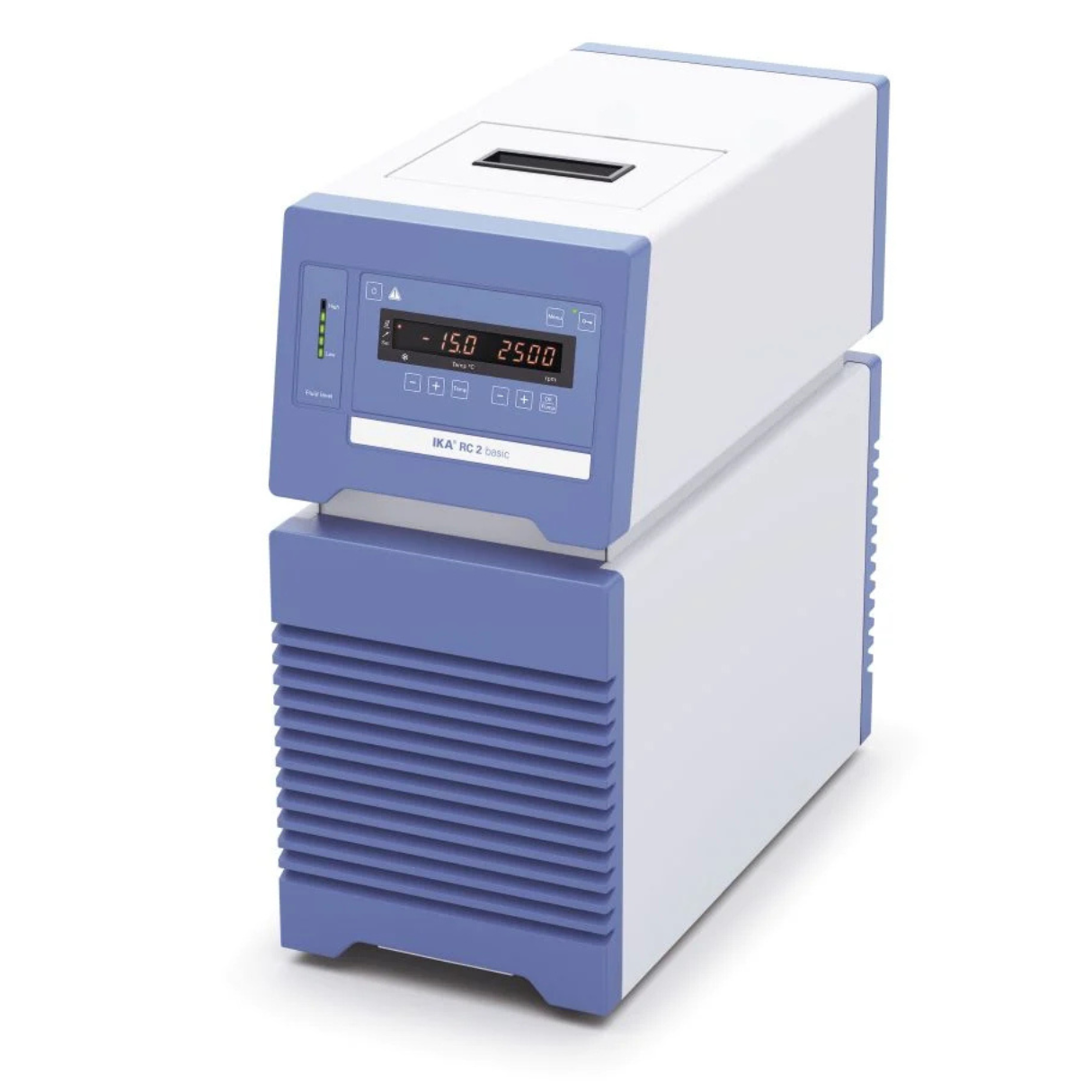

High-efficiency circulating chiller with powerful 400 W cooling capacity. Designed for cooling applications up to -20 °C.
Scope Delivery
- RC 2 basic
- Olive for DN 8 hoses (2 pcs.)
- Olive for DN 12 hoses (2 pcs.)
- USB Cable - USB A to Micro-B, 2 m
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Appliance type | Recirculating chiller |
| Cooling agent | R134a |
| Cooling agent quantity | 230 g |
| Cooling agent pressure max. | 20 bar |
| Cooling capacity (@20°C) | 400 W |
| Cooling capacity (@10°C) | 370 W |
| Cooling capacity (@0°C) | 320 W |
| Cooling capacity (@-10°C) | 240 W |
| Cooling capacity (@-20°C) | 130 W |
| Working temperature | -20 - room temp. °C |
| Operating temperature min. | -20 °C |
| Operating temperature max. (with external heating) | 80 °C |
| Temperature display | yes |
| Temperature control | PID |
| Working temperature sensor | PT100 |
| Working temperature display | LED |
| Temperature stability DIN 12876 | ±0.1 K |
| Display resolution | 0.1 K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Sub-level protection | yes |
| Filling volume | 1.4 – 4.0 l |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.3 bar |
| Pressure pump (suction side) (0 liter flow) | 0.2 bar |
| Flow rate max. (0 bar back pressure) | 18 l/min |
| Calibration option | yes |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Noise level | 52 dB(A) |
| Dimensions (W x H x D) | 220 x 475 x 525 mm |
| Weight | 31.26 kg |
| Permissible ambient temperature | 5 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | Micro-USB |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 300 W |
