Product Code/SKU
Code
0004183000
Descriptions

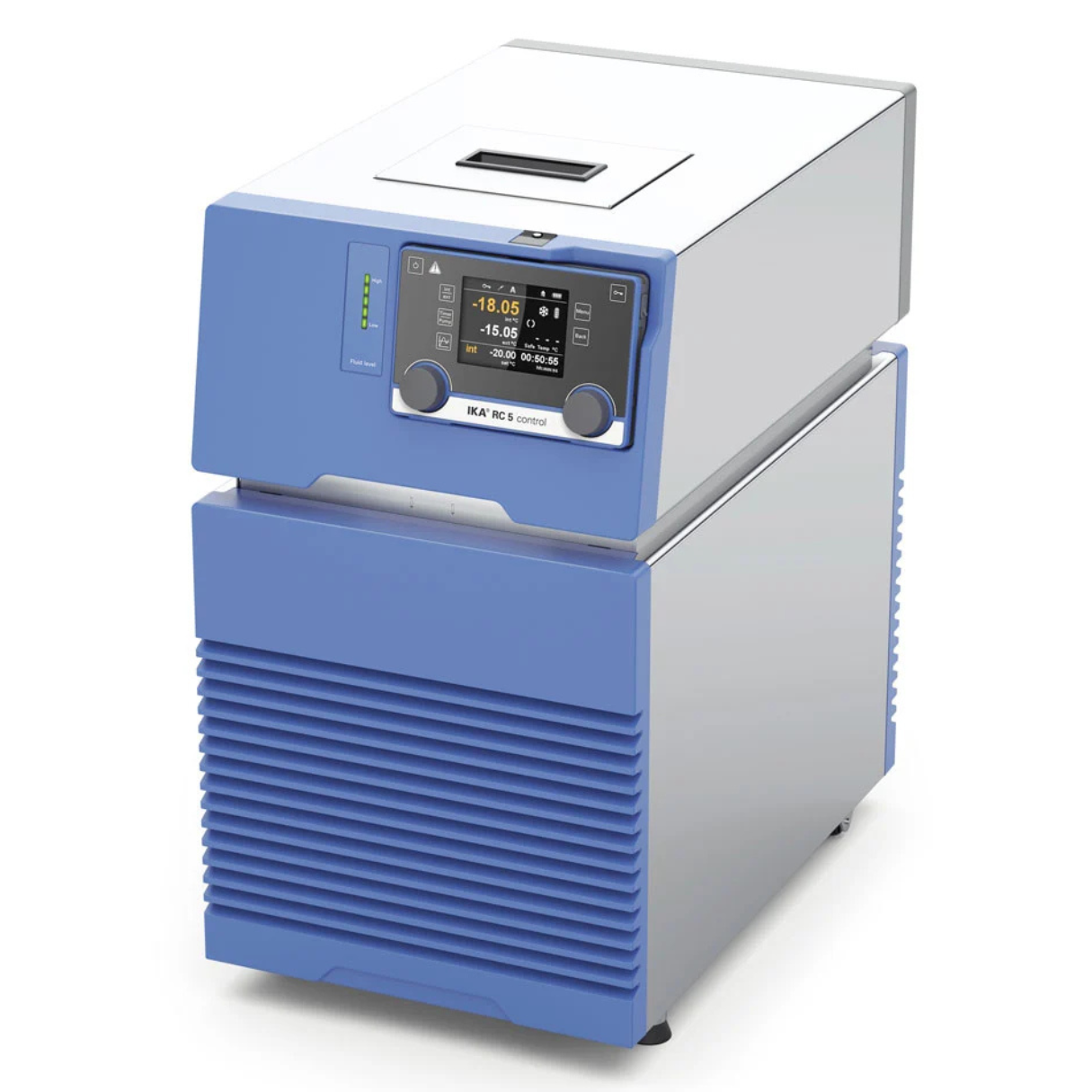

Powerful recirculating chiller, designed for external cooling applications up to -30°C. Due to the PT100 temperature sensor, which is part of the delivery and its excellent temperature stability of about ± 0,1 K, the RC 5 can handle even sophisticated applications.
Scope Delivery
- RC 5 control
- PT 100.30 Temperature sensor
- Hose olive NW 8 (2 pcs.)
- Hose olive NW 12 (2 pcs.)
- WH10 WiCo Holder
- OS 1.0 power supply (for WiCo)
- USB Cable - USB A to Micro-B, 2 m
- USB 2.0 cable Micro A – Micro B
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Appliance type | Recirculating chiller |
| Cooling agent | R290 |
| Cooling agent quantity | 90 g |
| Cooling agent pressure max. | 21 bar |
| Cooling capacity (@20°C) | 1400 W |
| Cooling capacity (@10°C) | 1200 W |
| Cooling capacity (@0°C) | 950 W |
| Cooling capacity (@-10°C) | 650 W |
| Cooling capacity (@-20°C) | 450 W |
| Cooling capacity (@-30°C) | 200 W |
| Working temperature | -30 - room temp. °C |
| Operating temperature min. | -30 °C |
| Operating temperature max. (with external heating) | 80 °C |
| Temperature display | yes |
| Temperature control | PID |
| Working temperature sensor | PT100 |
| Working temperature display | TFT |
| Temperature stability DIN 12876 | ±0.1 K |
| Connection for ext. temperature sensor | PT 100 |
| Display resolution | 0.1 K |
| Display for operation with ext. sensor | yes |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Sub-level protection | yes |
| Filling volume | 5.0 – 7.0 l |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.61 bar |
| Pressure pump (suction side) (0 liter flow) | 0.45 bar |
| Flow rate max. (0 bar back pressure) | 31 l/min |
| Pump connection | M16x1 |
| Calibration option | yes |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Multi-Interface | yes |
| Alarm output (potential-free contact) max. | 30 V AC/DC |
| Alarm output (potential-free contact) max. | 1 A |
| Solenoid valve output | 24 VDC |
| Solenoid valve output max. | 0.8 A |
| Standby input | 5 VDC |
| Noise level | 61 dB(A) |
| Dimensions (W x H x D) | 310 x 546 x 490 mm |
| Weight | 37.5 kg |
| Permissible ambient temperature | 5 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | Micro-USB |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 1100 W |
