Product Code/SKU
Code
0003691100
Descriptions

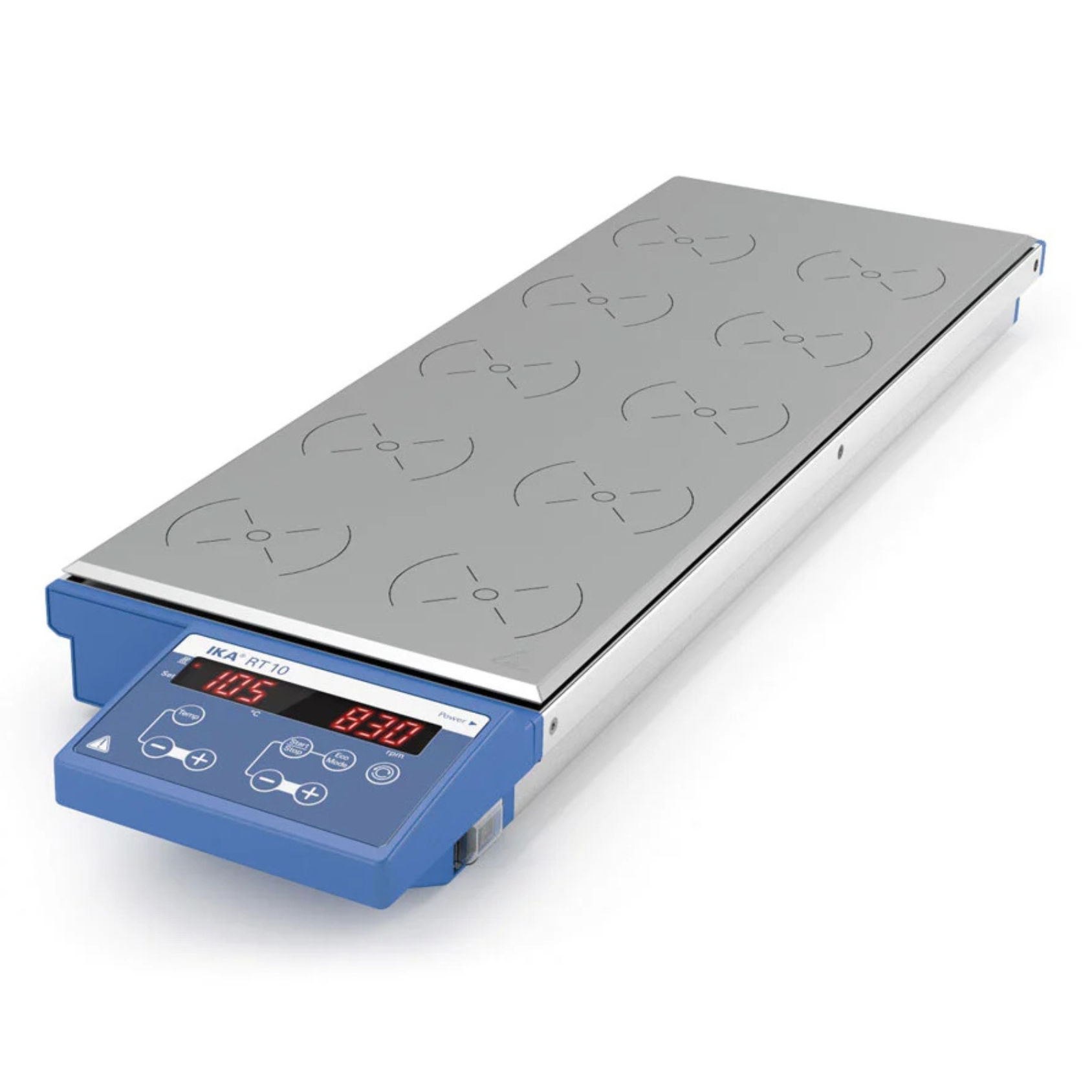

With Heating RT 10 Magnetic Stirrer
10-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The surface temperature is infinitely adjustable up to 120°C
Scope of delivery
- RT 10
- Silicone mat for protection and optimized temperature distribution
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Number of stirring positions | 10 |
| Stirring position distance | 90 mm |
| Speed deviation of individual stirring positions | 0 % |
| Stirring quantity max. per stirring position (H2O) | 0.4 l |
| Maximum load | 10 kg |
| Speed adjustment | 10 RPM Steps |
| Speed range | 0 - 1000 rpm |
| Stirring bar length | 25 - 30 mm |
| Heat output | 375 W |
| Heating temperature range | room temp. - 120 °C |
| Heat control | LED |
| Adjustable safety circuit | 50 - 150 °C |
| Set-up plate material | Aluminium alloy |
| Set-up plate dimensions | 180 x 495 mm |
| Heating rate (1l H2O in H1500) | 3 K/min |
| Dimensions (W x H x D) | 190 x 60 x 610 mm |
| Weight | 7.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | : 395 W |
