Product Code/SKU
Code
00037370000
Descriptions

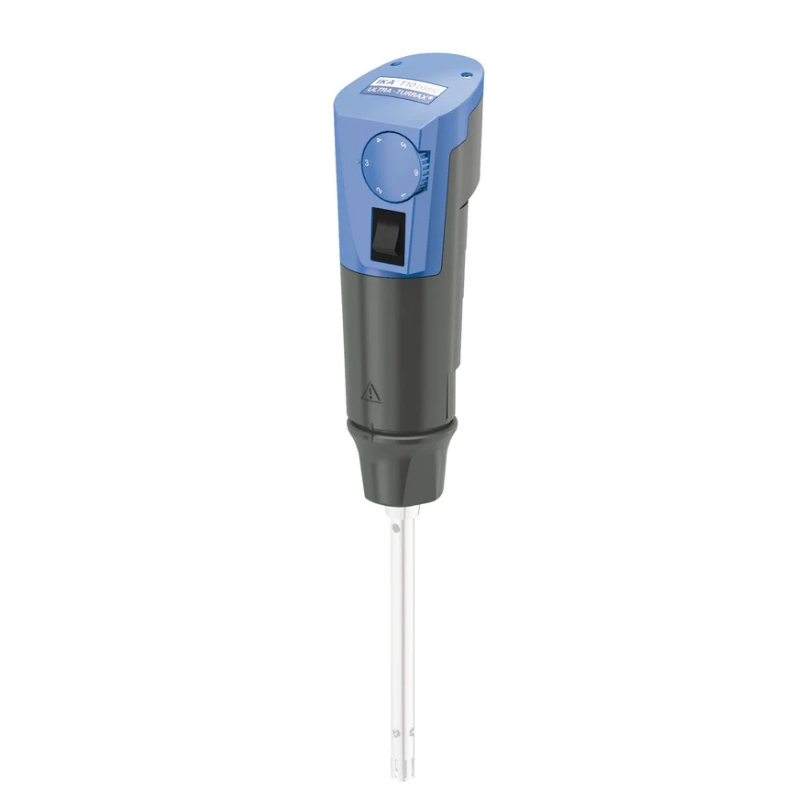

LAB Scale Dispersers T 10 basic ULTRA-TURRAX
Crushing dispersers are versatile tools used in various industries for tasks like homogenizing, emulsifying, suspending, and particle reduction. They are particularly effective in breaking down materials into finer particles or mixing substances evenly. Common applications include:
- Laboratory Use: Preparing samples for analysis, such as effluent homogenization or PCR analysis.
- Industrial Processes: Crushing and dispersing materials under vacuum pressure or high temperatures.
- Pharmaceuticals: Dissolving tablets and ensuring sterility in sample preparation.
Small dispersing instrument for volumes from 0.5 - 100 ml (H2O). It offers a wide speed range from 8000 – 30,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters.

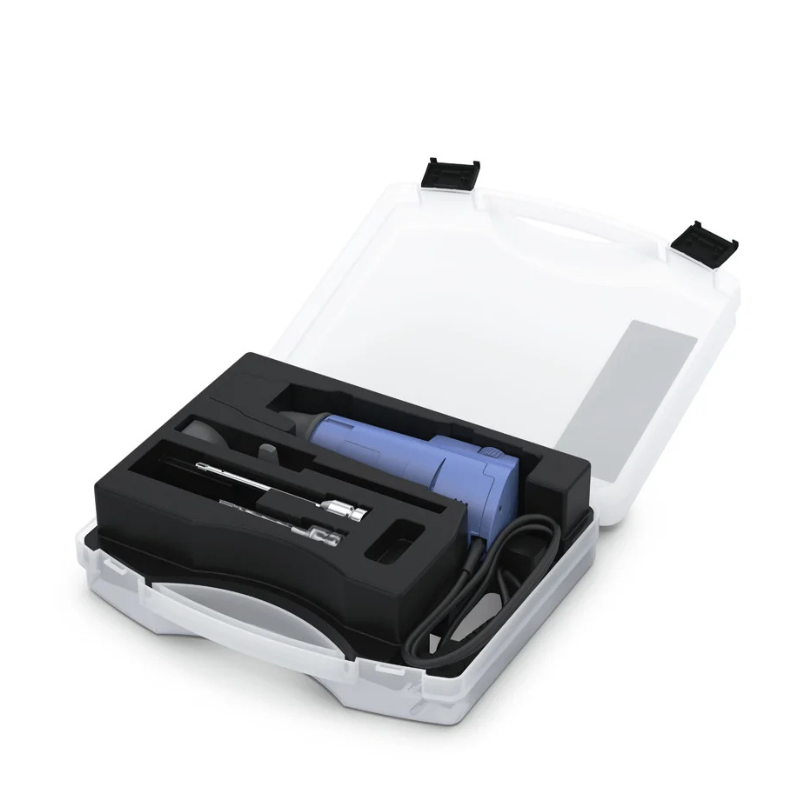

Scope of delivery
- T 10 basic ULTRA-TURRAX®

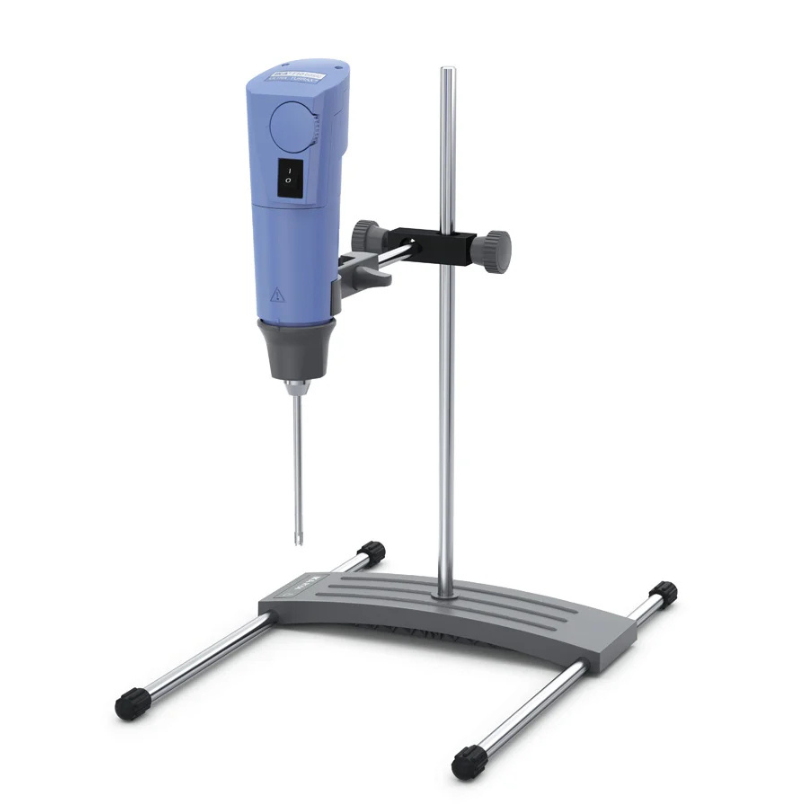

- R 200 Clamp
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Motor rating input | 125 W |
| Motor rating output | 75 W |
| Volume range (H2O) | 0.0005 – 0.1 l |
| Viscosity max. | 5000 mPas |
| Speed range | 8000 - 30000 rpm |
| Speed display | stepless |
| Speed adjustment | scale |
| Noise without element | 65 dB(A) |
| Extension arm diameter | 8 mm |
| Extension arm length | 100 mm |
| Process type | batch |
| Power-ON time | 10 min |
| Power-OFF time | 5 min |
| Dimensions (W x H x D) | 56 x 178 x 66 mm |
| Weight | 0.61 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 125 W |
