Product Code/SKU
Code
0004180000
Descriptions

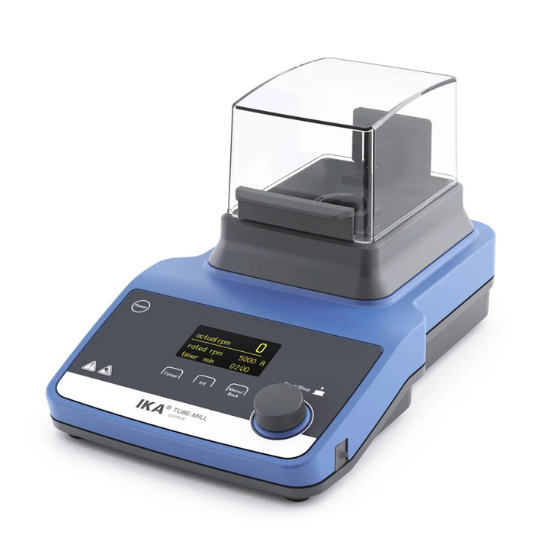

The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials. It is especially suitable for grinding seeds, such as corn and wheat. During development of the mill, particular emphasis was placed on security. The mill will only start when the hood is closed. When the grinding chamber is not inserted properly or not closed properly, the drive unit will display an error message and the drive will not start.
Scope of delivery
- MT 40 milling tube, 40 ml
- MMT 40.1 Multi-use milling tube
- Coupling extractor
- USB A-B Cable
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Motor rating input | 100 W |
| Motor rating output | 80 W |
| Speed range | 5000 - 25000 rpm |
| Process type | batch |
| Circumferential speed max. | 65 m/s |
| Useable volume max. | 40 ml |
| Feed hardness max. | 5 Mohs |
| Feed grain size max. | 10 mm |
| Power-ON time | 3 min |
| Mill feed can be cooled in milling chamber with dry ice | yes |
| Operating principle | cutting/impact |
| Speed deviation | ±2 % |
| Dimensions (W x H x D) | 180 x 170 x 300 mm |
| Weight | 2.7 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| USB interface | USB-B |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 100 W |
