Product Code/SKU
Code
0020124926
Descriptions

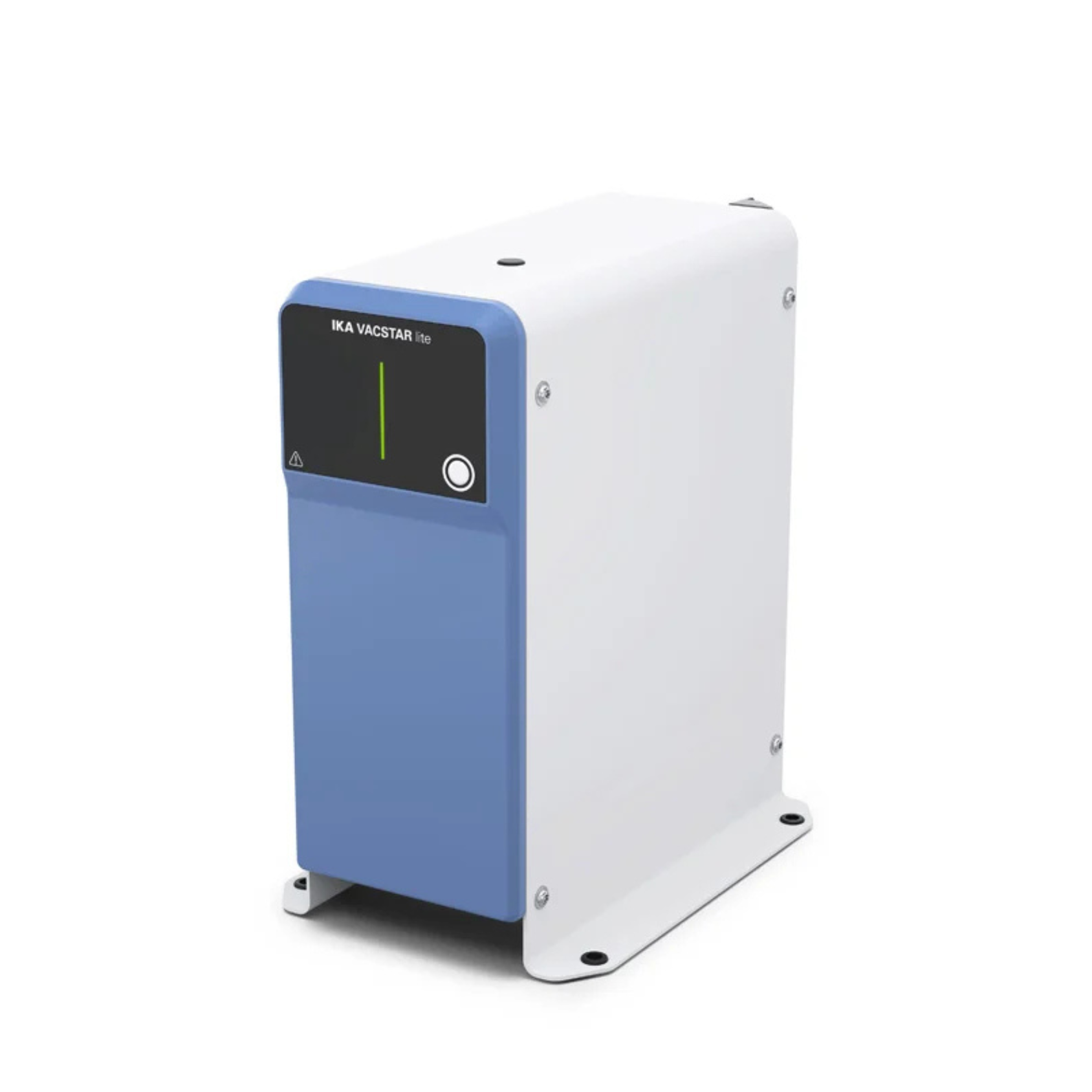

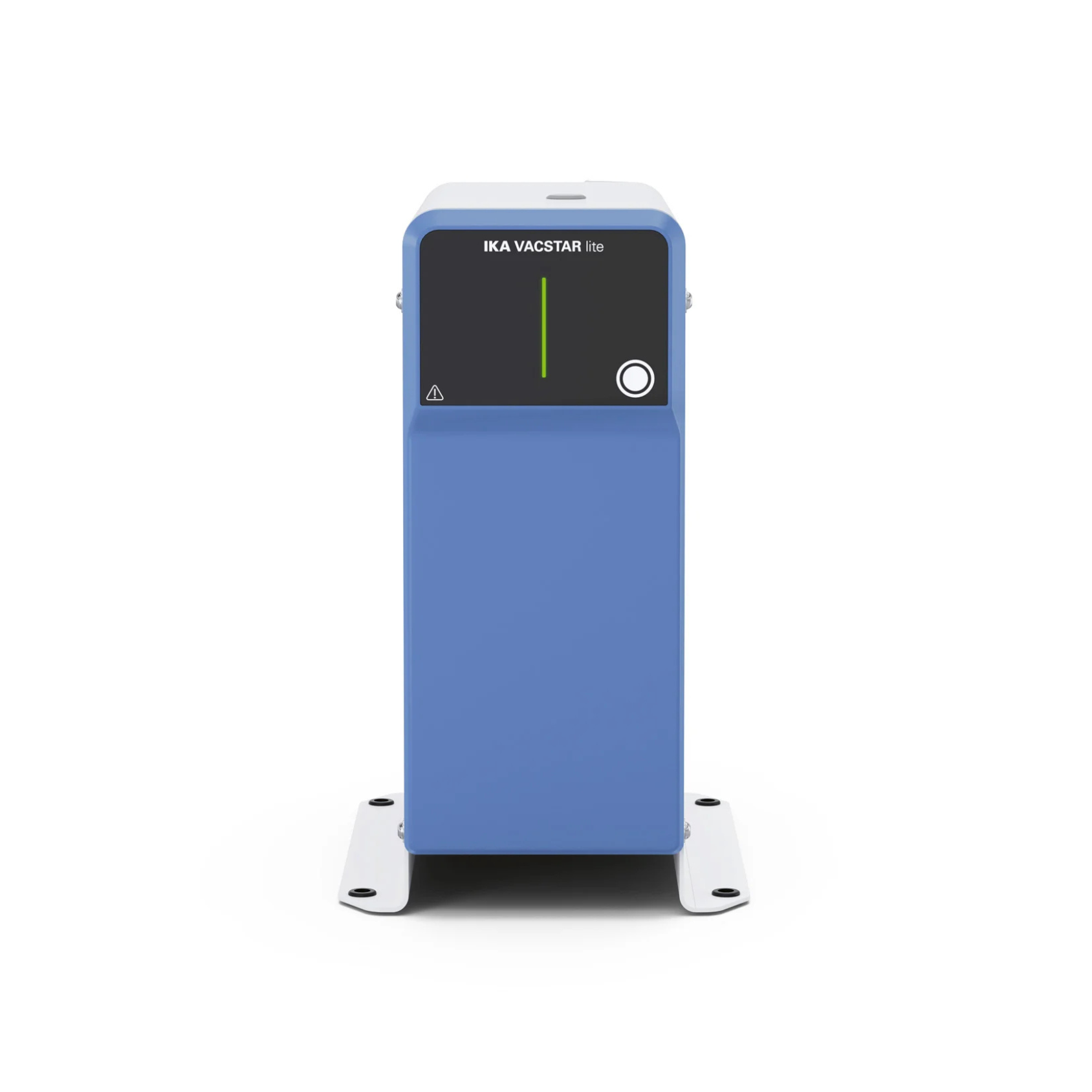

Vacstar lite is a speed-controlled, 2-cylinder vacuum pump for universal use in dry and oil-free vacuum applications. Equipped with chemically resistant membranes and an ultimate vacuum pressure of 9 mbar, this vacuum pump is ideal for almost all standard vacuum applications in the laboratory.
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Pump rate max. (50/60Hz) | 1 m³/h |
| Pump rate max. (50/60Hz) | 16.67 l/min |
| Final pressure without gas ballast | 9 mbar |
| Suction levels | 2 |
| Cylinder | 2 |
| Connection diameter suction side | 8 mm |
| Connection diameter pressure side | 8 mm |
| Input pressure | 10 - 1030 mbar |
| Speed range | 285 - 1100 rpm |
| Speed (50Hz) | 1100 rpm |
| Speed (60Hz) | 1100 rpm |
| Nominal speed | 1100 rpm |
| Display | LED line |
| Noise at low. pressure | 54 dB(A) |
| Material in contact with medium | Al2O3; PTFE; FFPM; PPS; NBR |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 115 x 292 x 280 mm |
| Weight | 8.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| USB interface | USB-C |
| Analog input | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 120 W |
| Power input standby | 1.5 W |
| Fuse | 2x T4A 250V |
