Product Code/SKU
Code
0003340000
Descriptions

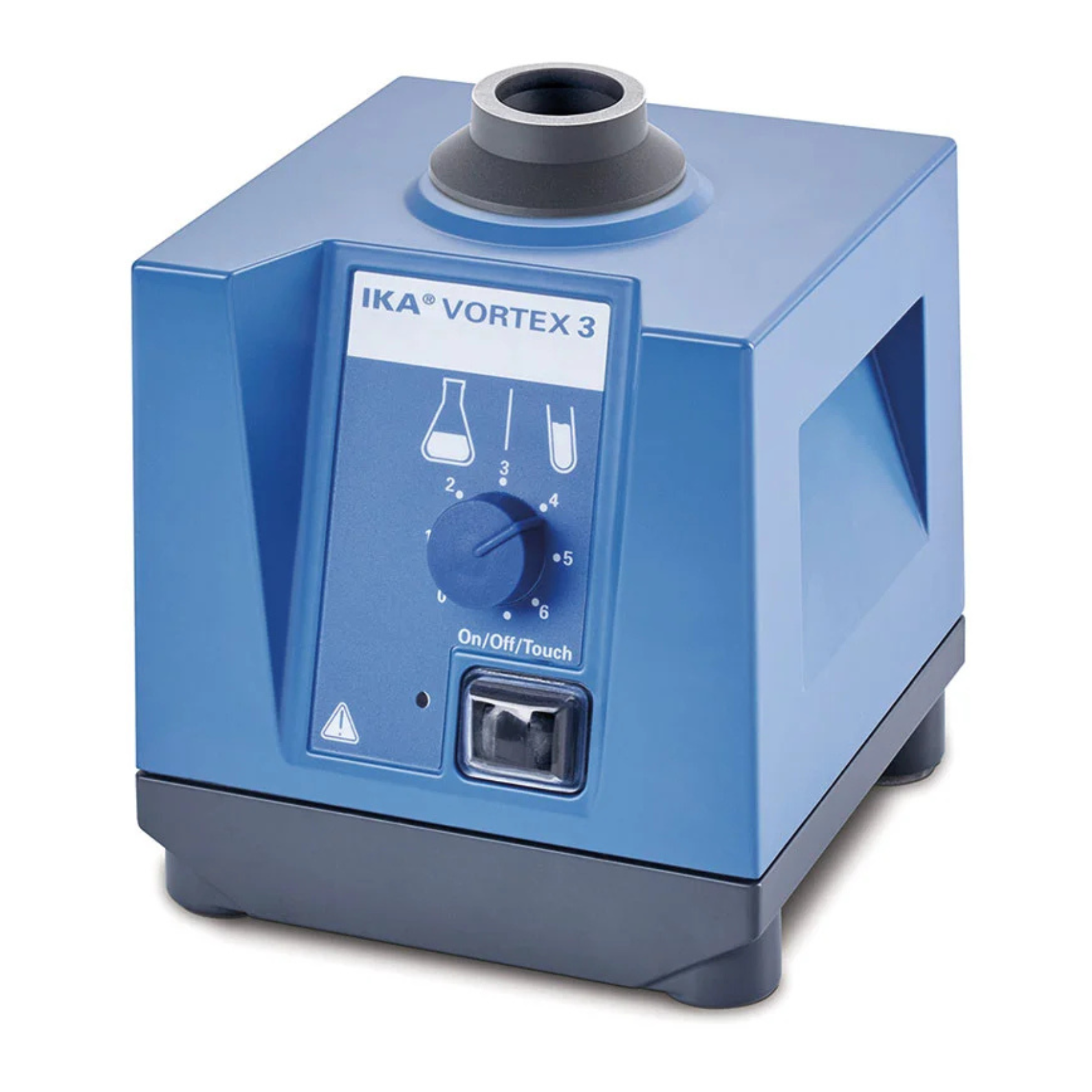

Vortex shaker suitable for short-time operation (touch function), activated by pressing shaker attachment or continuous operation. Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.) Infinitely adjustable speed range: 500 - 2.500 rpm
Scope of delivery
- VORTEX 3
- VG 3.1 Standard attachment
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Type of movement | orbital |
| Shaking stroke | 4 mm |
| Permissible shaking weight (incl. attachment) | 0.4 kg |
| Motor rating input | 58 W |
| Motor rating output | 10 W |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 500 rpm |
| Speed range | 0 - 2500 rpm |
| Speed display | none |
| Operating mode | continuous operation |
| Touch function | yes |
| Working with microtiter plates | yes |
| Number of microtiter plates | 1 |
| Dimensions (W x H x D) | 127 x 136 x 149 mm |
| Weight | 4.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 200 - 240 V |
| Frequency | 50/60 Hz |
| Power input | Power input |
